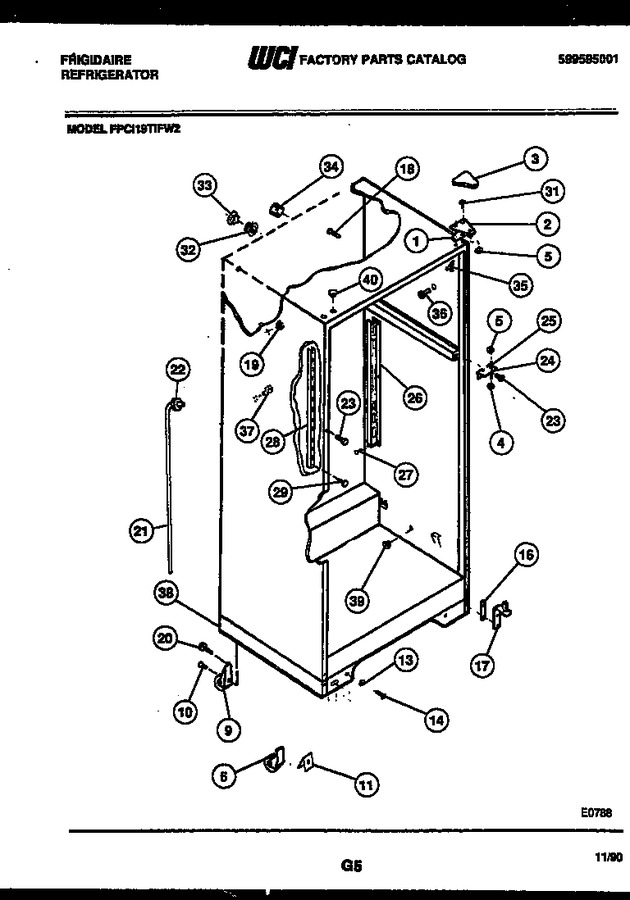

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 2 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| 3 | 5303001664 | Hinge Cover, Avocado |
|
- | |||||
| 4 | 5308000186 | Washer, Nylon |
|
Immediately | $ 6.02 | ||||
| 5 | 5308000007 | Washer, Nylon (2) |
|
- | |||||
| 6 | 5303212490 | Roller, Front (2) |
|
- | |||||
| 9 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 10 | 5308009762 | Bolt, Roller Mtg (2) |
|
- | |||||
| 11 | 5308009790 | Spring, Roller Adj (2) |
|
$ 4.30 | |||||
| 13 | 5308011326 | Washer (2) |
|
$ 9.87 | |||||
| 14 | 3212598 | Bolt-roller Adj (2) |
|
- | |||||
| 16 | 5303212488 | Shim-lower Hinge |
|
$ 5.25 | |||||
| 17 | 5303212489 | Bracket-lower Hinge |
|
- | |||||
| 18 | 5308000097 | Support-coil Cover |
|
- | |||||
| 19 | 5308016571 | Plug-frzr Liner (4) |
|
$ 4.79 | |||||
| 20 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 21 | 5303210377 | Drain Tube & Seal |
|
$ 109.31 | |||||
| 22 | 5303207353 | Ring Seal, Tube |
|
$ 6.81 | |||||
| 23 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 24 | 5303001369 | Bracket-ctr Hinge |
|
- | |||||
| 25 | 5308000184 | Pin, Ctr Hinge |
|
$ 8.87 | |||||
| 26 | 5308000302 | Channel, Rh & Lh |
|
- | |||||
| 27 | 5308010253 | Screw, Mtg (6) |
|
- | |||||
| 28 | 5303015409 | Channel Center |
|
- | |||||
| 29 | 5308016568 | Screw-mtg (3) |
|
- | |||||
| 31 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 32 | 5303001286 | Ferrule-inner |
|
- | |||||
| 33 | 5303001287 | Ferrule-outer |
|
- | |||||
| 34 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 35 | 5303202387 | Corner Trim-avocado |
|
- | |||||
| 36 | 5304509705 | Grommet, Shelf (2) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 37 | 5304500407 | Grommet, Shelf (2) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 38 | 5303212487 | Base-cabinet |
|
- | |||||
| 39 | 08000087 | Plug-refr Liner (2) |
|
- | |||||
| 40 | 5303001677 | Plug-avocado |
|
- | |||||
| *38909 | 5303212597 | Tapping Plate-gusset Rh-lower |
|
- | |||||
| *38909 | 5308012296 | Tapping Plate (2)-upper |
|
$ 47.44 | |||||
| *38909 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| *38909 | 5303212596 | Tapping Plate-gusset Lh-lower |
|
- | |||||
| 17A | 5303001320 | Screw-hinge Mtg (6) (non-illustrated) |
|
- | |||||
| 23A | 5303206754 | Washer-steel (4) (non-illustrated) |
|
- |
