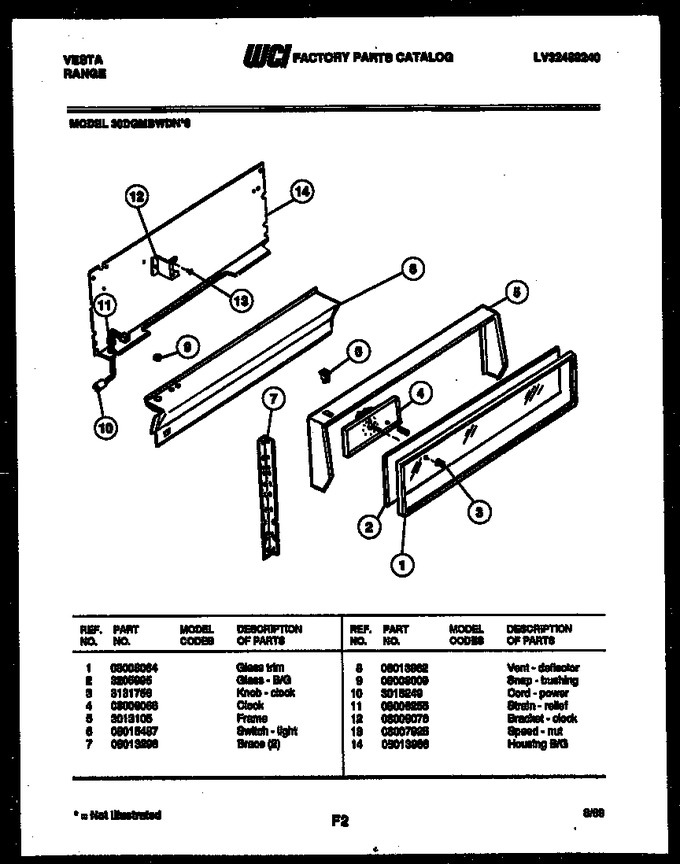

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08008064 | Glass - Trim |
|
- | |||||
| 2 | 3205995 | Glass - B/g |
|
- | |||||
| 3 | 3131756 | Knob - Clock |
|
- | |||||
| 4 | 08008066 | Clock |
|
- | |||||
| 5 | 3013105 | Frame |
|
- | |||||
| 6 | 08015487 | Switch-light |
|
- | |||||
| 7 | 08013296 | Brace (2) |
|
- | |||||
| 8 | 08013962 | Vent - Deflector |
|
- | |||||
| 9 | 08008009 | Bushing,snap |
|
- | |||||
| 10 | 3015249 | Cord - Power |
|
- | |||||
| 11 | 08008255 | Strain - Relief |
|
- | |||||
| 12 | 08008076 | Bracket - Clock |
|
- | |||||
| 13 | 08007925 | Nut - Speed |
|
- | |||||
| 14 | 08013966 | Housing B/g |
|
- |
