02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08013638		End Cap-shelf (2)		Appelez-nous	-
2	3018978		Trim, Shelf		Appelez-nous	-
3	3017427		Trim, Shelf		Appelez-nous	-
4	3018979		Shelf-freezer		Appelez-nous	-
5	3018980		Trim-full Shelf		Appelez-nous	-
6	3018981		Shelf-full		Appelez-nous	-
7	08000185		Tape, Foam, Adhesive		Appelez-nous	-
8	3018873		Pan-crisper Ls		Appelez-nous	-
9	3017423		Trim-pan		Appelez-nous	-
10	3018645		Ice Container		Appelez-nous	-
11	3018982		Pan-crisper Rs		Appelez-nous	-
12	3017422		Trim-pan		Appelez-nous	-
13	3018983		Cover-crisper		Appelez-nous	-
14	3006429		Support-cover		Appelez-nous	-
15	3018986		Trim, Meat Pan		Appelez-nous	-
16	3018987		Meat Pan		Appelez-nous	-
17	3018988		Cover-meat Pan		Appelez-nous	-
18	08000055		Cover-deflector		Appelez-nous	-
19	08000071		Air Deflector		Appelez-nous	-
20	3018989		Trim-half Shelf (2)		Appelez-nous	-
21	3018990		Shelf-half (2)		Appelez-nous	-
22	08000066		Damper-fan Cover		Appelez-nous	-
23	08000067		Push Nut		Appelez-nous	-
24	08009793		Knob-damper		Appelez-nous	-
25	08009823		Label, Knob		Appelez-nous	-
26	08009817		Fan Cover		Appelez-nous	-
27	08009822		Label-fan Cover		Appelez-nous	-
28	08016566		Screw		Appelez-nous	-
29	08002735		Light Bulb		Appelez-nous	-
30	3018893		Knob, Temp Control		Appelez-nous	-
31	3018894		Control-temperature		Appelez-nous	-
32	08000009		Screw		Appelez-nous	-
33	08000008		Screw-timer Mtg		Appelez-nous	-
34	08003637		Tube-plastic		Appelez-nous	-
35	08000815		Light Socket		Appelez-nous	-
36	3018895		Control Box		Appelez-nous	-
37	3018896		Switch-rocker		Appelez-nous	-
38	3018891		Housing, Cap Tube		Appelez-nous	-
39	08006992		Timer		Appelez-nous	-
40	08002748		Screw		Appelez-nous	-
41	08000056		Drain Spout		Appelez-nous	-
42	5308000010		Fan Blade   (Replaces: 08000010)			Immediately	$ 49.03
43	3018991		Rail-offset Ls		Appelez-nous	-
44	08000124		Orifice Ring-fan		Appelez-nous	-
45	08000107		Bracket-connector		Appelez-nous	-
46	08000036		Motor-fan		Appelez-nous	-
47	08000043		Bracket-front		Appelez-nous	-
48	08000042		Bracket-rear		Appelez-nous	-
49	08000032		Bushing-motor (2)		Appelez-nous	-
50	08000126		Nut U-type (2)		Appelez-nous	-
51	08009771		Cover-evap Coil		Appelez-nous	-
52	08010007		Spacer-mullion (2)		Appelez-nous	-
53	08003607		Washer-steel (4)		Appelez-nous	-
54	08000058		Heater-mullion		Appelez-nous	-
55	08010025		Mullion-white		Appelez-nous	-
56	08010008		Strap-mullion Mtg		Appelez-nous	-
57	08009772		Drain Trough		Appelez-nous	-
58	08000069		Light Switch		Appelez-nous	-
59	08000070		Screw		Appelez-nous	-
60	08015543		Bottom-freezer		Appelez-nous	-
61	3018993		Top - Refrigerator		Appelez-nous	-
62	3018994		Divider-foam		Appelez-nous	-
13A	3018984		Trim, Crisper Cover (non Illustrated)		Appelez-nous	-
13B	3018985		Glass-crisper Cover (non-illustrated)		Appelez-nous	-
36A	08012354		Screw-box Mtg (non-illustrated)		Appelez-nous	-
43A	3018992		Rail-straight Rs (non-illustrated)		Appelez-nous	-
45A	08002748		Screw		Appelez-nous	-

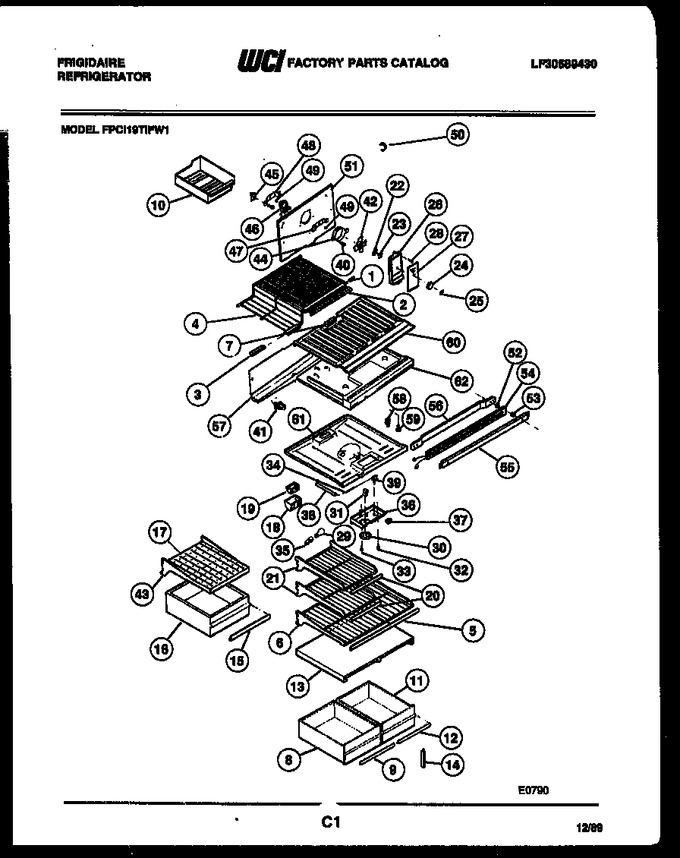

    View Diagram in Separate Window       Print Part List
