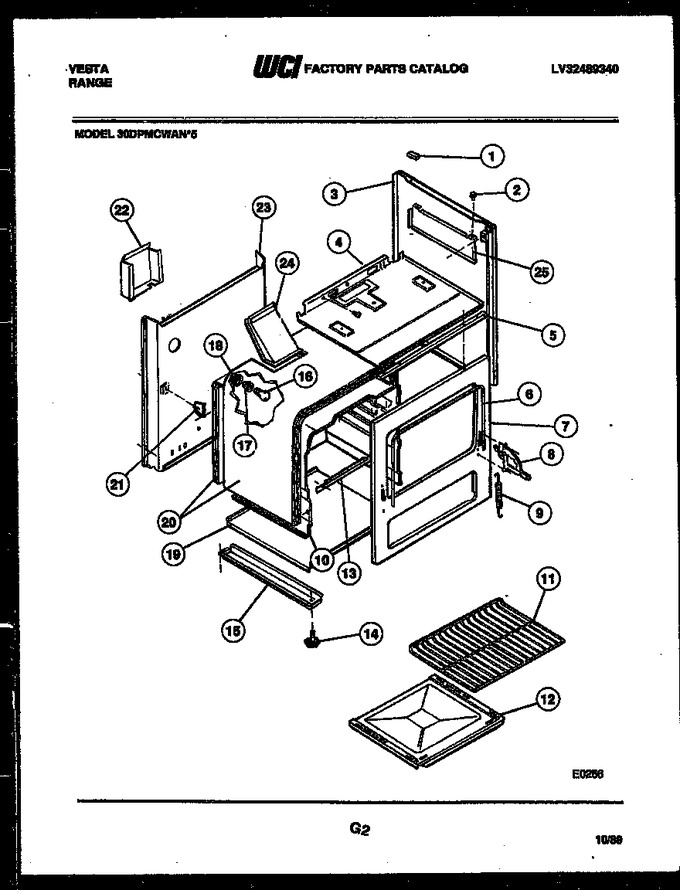

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet Plastic		Appelez-nous	-
3	3051061		B/s Panel - White		Appelez-nous	-
4	3017174		Bottom Burner Box		Appelez-nous	-
5	3131811		Supt-control Panel		Appelez-nous	-
6	3205578		Front Frame-bronze		Appelez-nous	-
7	08008022		Seal-oven Door		Appelez-nous	-
8	3204672		Hinge Assy Lh		Appelez-nous	-
9	3009435		Spring Oven Door (2)		Appelez-nous	-
10	3018284		Liner-rt Side		Appelez-nous	-
11	3015714		Rack - Oven (2)		Appelez-nous	-
12	3018282		Liner-bottom		Appelez-nous	-
13	3131038		Support-oven Bottom		Appelez-nous	-
14	3051080		Screw-leveling Leg		Appelez-nous	-
15	08068047		Base Rail		Appelez-nous	-
16	3013071		Bulb - Oven Light		Appelez-nous	-
17	3009410		Recept - Oven Light		Appelez-nous	-
18	3051511		Cup, Oven Light				$ 60.22
19	3011645		Bottom - Main		Appelez-nous	-
20	3017171		Insulation - Wrap		Appelez-nous	-
21	3051096		Support,oven Rear		Appelez-nous	-
22	08013953		Cover-spark Module		Appelez-nous	-
23	3013340		Back-main		Appelez-nous	-
24	3017173		Vent Box		Appelez-nous	-
25	3131053		Shield Burner Box (rt)		Appelez-nous	-
*31903	3934059		Anti - Tip Bracket		Appelez-nous	-
10A	3018285		Liner-lt Side		Appelez-nous	-
10B	3018347		Liner - Top		Appelez-nous	-
10C	3018286		Liner-back		Appelez-nous	-
20A	3017172		Insulation - Back		Appelez-nous	-
25A	3131054		Shield Burner Box (lt)		Appelez-nous	-
8A	3204670		Hinge Assy Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
