02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

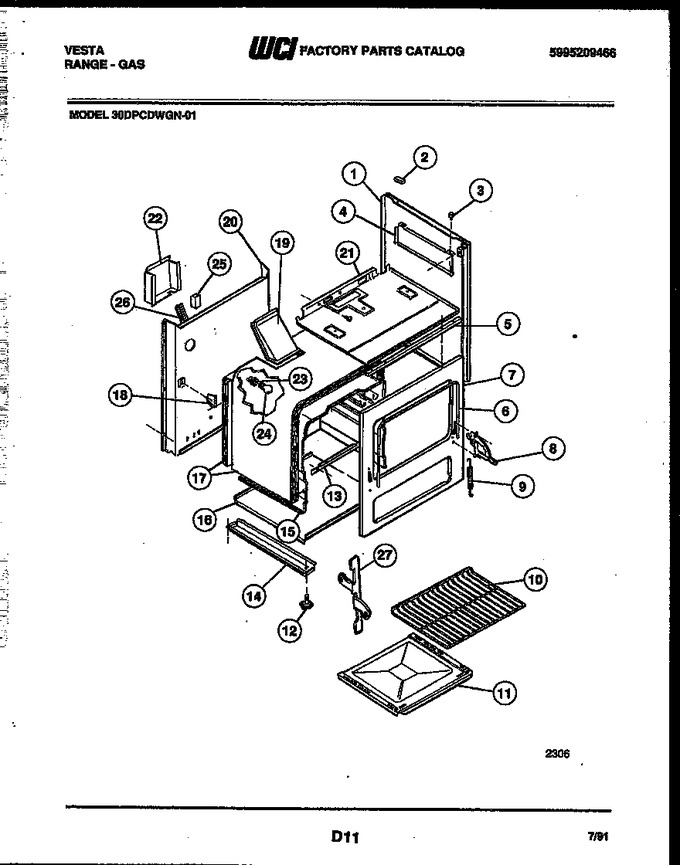

| 1 | 5308014019 | Panel Side - Almond |
|
- | |||||
| 2 | 3205587 | Grommet-top Rear (2) |
|
- | |||||
| 3 | 3051063 | Grommet-top Front (2) |
|
- | |||||
| 4 | 5303131053 | Shield-heat Rh |
|
- | |||||
| 5 | 3051067 | Support - Cntrl Pnl |
|
- | |||||
| 6 | 5308008022 | Seal-door |
|
$ 124.89 | |||||
| 7 | 3205578 | Frame - Front |
|
- | |||||
| 8 | 3202749 | Channel - Door Hinge |
|
- | |||||
| 9 | 5308008028 | Spring (2) |
|
- | |||||
| 10 | 5303015714 | Rack (2) |
|
- | |||||
| 11 | 3018282 | Panel - Bottom |
|
- | |||||
| 12 | 318175510 | Screw-leveling (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 13 | 3131038 | Support-ov Btm |
|
- | |||||
| 14 | 5308068047 | Rail-base (2) |
|
- | |||||
| 15 | 3018709 | Liner-side Rh |
|
- | |||||
| 16 | 3018282 | Bottom - Oven |
|
- | |||||
| 17 | 3017171 | Insulation - Wrap |
|
- | |||||
| 18 | 3051096 | Support-rear (2) |
|
- | |||||
| 19 | 3017173 | Vent - Flue |
|
- | |||||
| 20 | 5303013340 | Back-main |
|
- | |||||
| 21 | 3017174 | Burner-box Btm |
|
- | |||||
| 22 | 08013953 | Cover-spark Module |
|
- | |||||
| 23 | 316116400 | Socket - Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 24 | 40A15 | Bulb-light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 25 | 5303209931 | Spark Module |
|
- | |||||
| 26 | 3131046 | Channel Main Back |
|
- | |||||
| 27 | 5303204670 | Plate - Rt - Oven Door Hinge |
|
- | |||||
| 14A | 5303210255 | Base Rail Rh |
|
- | |||||
| 14B | 5303210256 | Base Rail Lh |
|
- | |||||
| 15A | 3018710 | Liner-side Lh |
|
- | |||||
| 15B | 3018713 | Liner-top |
|
- | |||||
| 15C | 3018712 | Liner-back |
|
- | |||||
| 17A | 3017172 | Insulation - Back |
|
- | |||||
| 21A | 3934059 | Anti - Tip Bracket (non-illustrated) |
|
- | |||||
| 26A | 19100180271 | Diagram - Wiring (not For Purchase) (non-illustrated) |
|
- | |||||
| 27A | 5303204672 | Plate - Lf - Oven Door Hinge |
|
- | |||||
| 4A | 5303131054 | Shield-heat Lh |
|
- |
