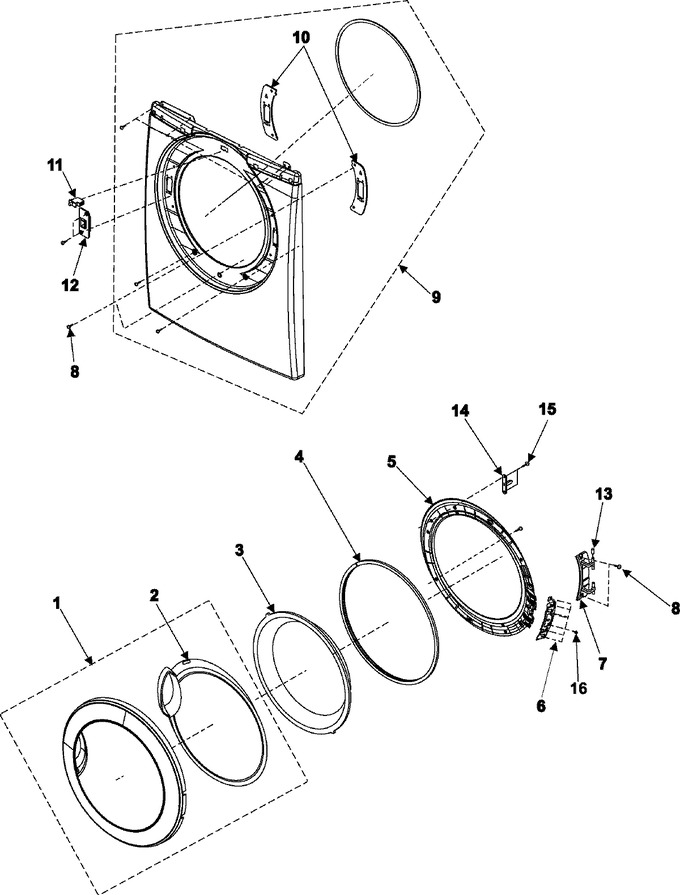

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Cover-door Currently Unavailable		Appelez-nous	-
2	DC64-01120A		Door-safety				$ 109.77
3	555555		Door-glass   (Replaces: DC64-00993A)				$ 151.94
4	DC62-00198B		Seal-door				$ 92.12
5	DC61-01523A		Holder-glass				$ 93.12
6	Y00000000		See Note Support-hinge Currently Unavailable		Appelez-nous	-
7	DC61-01532A		Hinge-door				$ 118.69
8	6001-001773		Screw-machine;th,+,m5,l12			Immediately	$ 2.39
9	DC97-10353B		Assy-frame Front				$ 154.85
10	DC61-01222A		Bracket-hinge				$ 12.60
11	DC64-00828A		Door-s/w				$ 43.82
12	DC61-01239B		Holder-lever				$ 3.23
13	DC61-00891A		Guide-hinge			Immediately	$ 2.56
15	6002-000444		Screw-tapping,th,+,2s,m4,l14			Immediately	$ 1.66
16	DC66-00395A		Lever-door			Immediately	$ 8.37
17	6002-000213		Screw-tapping			Immediately	$ 0.93
NI	DC97-10338A		Assy-cover Door				$ 204.53
