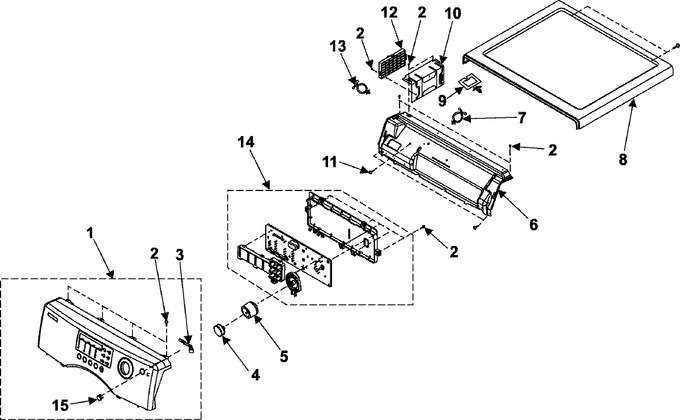

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DC97-10866A | Assy-s.panel Control |
|
- | |||||
| 2 | 555555 | Screw-tapping (Replaces: 6002-000231) |
|
$ 151.94 | |||||
| 3 | DC66-00413A | Lever-power |
|
$ 5.57 | |||||
| 4 | DC64-01132A | Button-encoder |
|
- | |||||
| 5 | DC97-10526A | Assy-knob Encoder;frontier,bby |
|
$ 32.17 | |||||
| 6 | Y00000000 | See Note Frame-plate Currently Unavailable |
|
- | |||||
| 7 | DC61-40081A | Holder-wire;nylon66 |
|
$ 0.85 | |||||
| 8 | DC63-00523A | Cover-top;gw-pjt,sbhg1-a,t1.6 |
|
$ 138.57 | |||||
| 9 | DC61-60074A | Clamp-wire Saddle |
|
$ 1.66 | |||||
| 10 | DC61-01229A | Holder-pcb |
|
$ 33.30 | |||||
| 11 | 6006-001170 | Screw-assy Tapp |
|
$ 0.85 | |||||
| 12 | 555555 | Assy Pcb Parts(m) (Replaces: MFS-FTDT-00) |
|
$ 151.94 | |||||
| 13 | 6502-000127 | Cable Clamp |
|
$ 13.33 | |||||
| 14 | YMFSF13DBS0 | Assy Pcb Parts(s) |
|
- | |||||
| 15 | DC64-01105A | Button-push(p) |
|
$ 7.73 |
