SELECT A DIAGRAM

02 - Freezer Door Parts

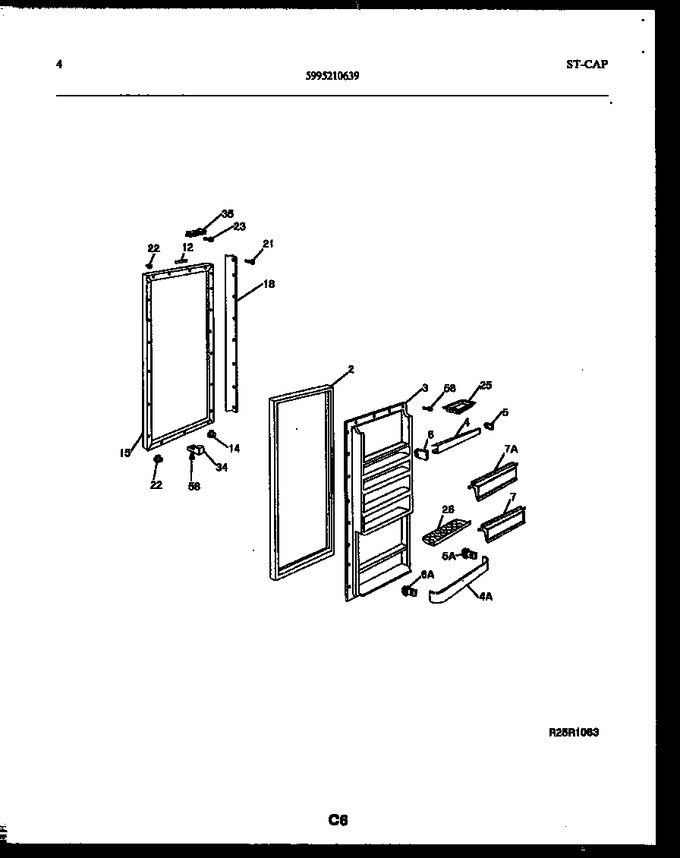

03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Refrigerator Control Assembly, Damp


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303201013		Gasket-refr Door, Magnetic		Appelez-nous	-
3	3018639		Panel-inner Door, Refr		Appelez-nous	-
4	3018638		Rack-door, Narrow, Refr, (3)		Appelez-nous	-
5	5303323480		Support-door Rack-rh (3)   (Replaces: 5303017378)				$ 14.18
6	5303323481		Support-door Rack-lh (3)   (Replaces: 5303017381)			Immediately	$ 14.18
7	3018636		Door-dairy, Lower		Appelez-nous	-
12	3201526		Nameplate Assy		Appelez-nous	-
14	5315230801		Button Plug, Refr/fzr Door		Appelez-nous	-
15	5300900892		Panel-refr Door, White		Appelez-nous	-
18	5303273122		Handle-door, Full-length, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
22	5303001022		Bearing-hinge Upper		Appelez-nous	-
23	5303001020		Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
25	5303018743		Dish, Butter		Appelez-nous	-
26	5303018635		Tray, Egg		Appelez-nous	-
34	5308000790		Bumper, Light Switch				$ 3.86
35	5303200272		Closer-door		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*55582	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
4A	5303206715		Rack-door, Wide, Refr, (2)		Appelez-nous	-
5A	5303206719		Support-door Rack, Rh		Appelez-nous	-
6A	5303206605		Support-door Rack, Lh		Appelez-nous	-
7A	3018637		Door-dairy, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
