Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3018346 Liner-oven Door Appelez-nous -
2 5303018345 Insulation Appelez-nous -
3 5308012609 Shield Oven Dr Heat Appelez-nous -
4 3051038 Nut Appelez-nous -
5 3051041 Spacer-handle Appelez-nous -
6 3051043 Bolts Appelez-nous -
7 3017037 Handle Oven Door Appelez-nous -
8 3205709 Pnl - Oven Door (white) Appelez-nous -
9 5308008057 Glass-outer Appelez-nous -
10 08007938 Clamp Appelez-nous -
11 5308008058 Glass-inner Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

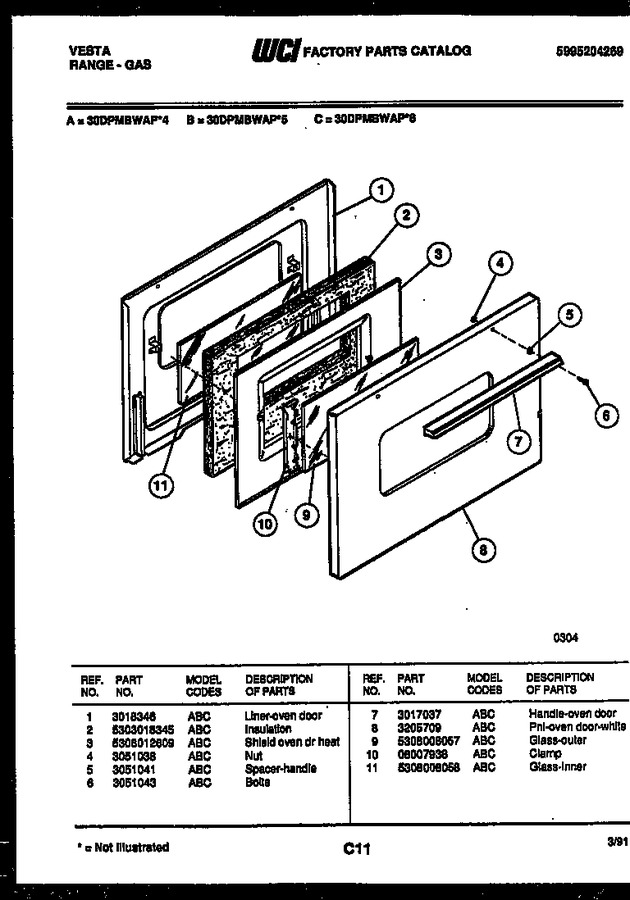

Diagram for 30DPMBWAP4
