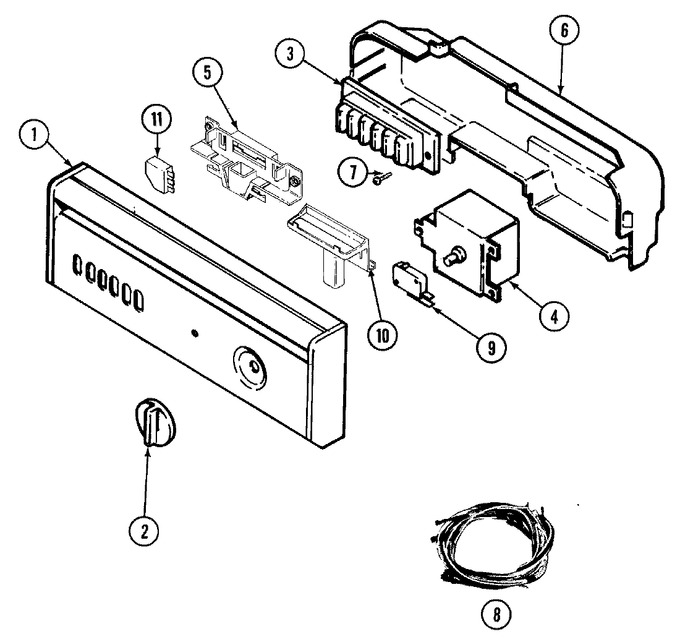

01 - Blower


02 - Control Panel


03 - Door


04 - Pump & Motor


05 - Racks


06 - Rinse Aid & Soap Dispenser


07 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
1	99001018		Panel, Control (wht)	A0	Appelez-nous	-
2	Y912983		Knob, Timer (wht)	A0	Appelez-nous	-
3	904053		Switch, Cntrl (4 Bttn-wht)	A0	Appelez-nous	-
4	903525		Timer	A0	Appelez-nous	-
4	99001144		Timer	B1	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
5	Y912664		Holder, Door Switch	A0			$ 38.66
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
5	12001118		Kit, Latch Handle (wht)	A9	Appelez-nous	-
6	Y912667		Barrier, Control Panel	A0	Appelez-nous	-
7	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
8	315471		Retainer, Wire	A6	Appelez-nous	-
8	99001179		Wire Harness, Main	B6	Appelez-nous	-
8	904087		Wire Harness, Main	A0	Appelez-nous	-
8	99001056		Wire Harness, Main	A6	Appelez-nous	-
9	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
10	12001118		Kit, Latch Handle (wht)	A9	Appelez-nous	-
10	Y912793		Handle, Latch (wht)	A0	Appelez-nous	-
11	903651		Extender, Cycle	A0	Appelez-nous	-
12	WPW10339879		Strap, Cable   (Replaces: 912266)	A0			$ 7.11
13	913279		Manual, Use & Care (frch)	B6	Appelez-nous	-
13	16000326		Guide, Quick Ref - Jenn-air	A0	Appelez-nous	-
13	Y913271		Manual, Use & Care	A0	Appelez-nous	-
