01 - Blower
02 - Control Panel
03 - Door
04 - Pump Assembly
05 - Racks
06 - Rinse Aid Assembly
07 - Tub
SELECT A DIAGRAM
New Model Search:

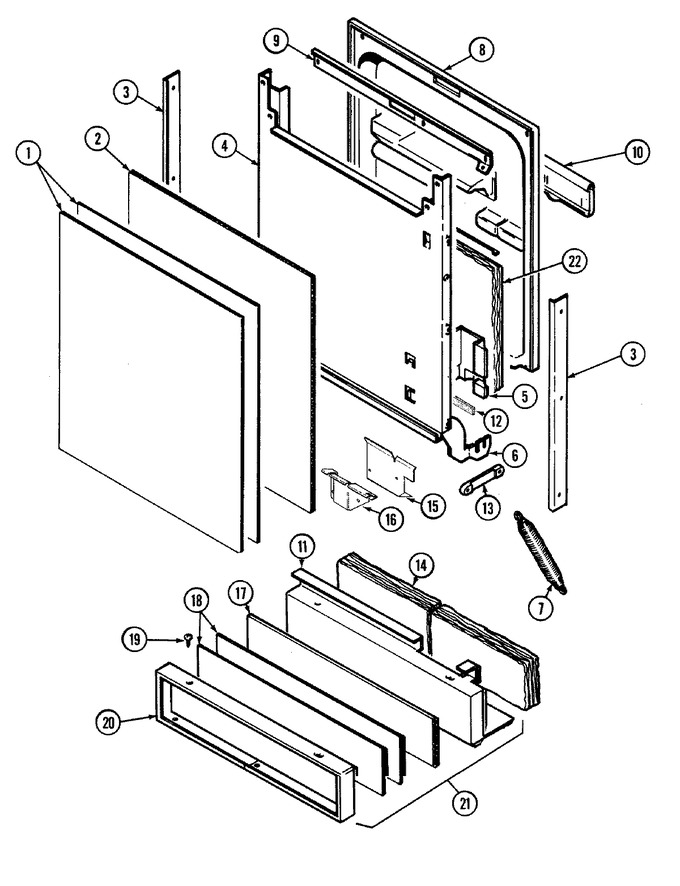

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99001110 | Trim, Panel (lwr-blk) | B4 |
|
- | ||||
| 1 | 912519 | Insert, Front Panel (al/wheat) | A0 |
|
- | ||||
| 1 | 912520 | Insert, Front Panel (wht/blk) | A0 |
|
$ 48.54 | ||||
| 1 | 912522 | Trim, Bottom (stnls) | A0 |
|
- | ||||
| 1 | 912024 | Rivet | A0 |
|
- | ||||
| 2 | 912521 | Filler, Front Panel | A0 |
|
- | ||||
| 3 | Y912783 | Trim, Side (stnls) | A0 |
|
- | ||||
| 3 | Y913157 | Screw | B4 |
|
- | ||||
| 3 | 912619 | Screw, Steel | A0 |
|
$ 11.60 | ||||
| 3 | 99001102 | Trim, Door (blk) | B4 |
|
- | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 4 | WPW10339879 | Strap, Cable (Replaces: 912266) | A0 |
|
$ 7.11 | ||||
| 4 | 903821 | Door, Outer | A0 |
|
- | ||||
| 5 | Y912666 | Retainer, Wire | A0 |
|
- | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 6 | 903070 | Hinge (lt) | A0 |
|
- | ||||
| 6 | 903071 | Hinge (rt) | A0 |
|
- | ||||
| 6 | WP179051 | Screw, Hinge----na (Replaces: 912623) | A0 |
|
Immediately | $ 7.16 | |||
| 7 | WP912652 | Spring, Door (Replaces: 912652) | A0 |
|
Immediately | $ 9.00 | |||
| 8 | 903867 | Door, Inner | A0 |
|
- | ||||
| 8 | Y912620 | Screw | A0 |
|
$ 5.48 | ||||
| 9 | Y912668 | Bar, Reinforcement | A0 |
|
- | ||||
| 10 | 903108 | Lid, Detergent Cup | A0 |
|
- | ||||
| 11 | 912636 | Panel, Access (blk) | A0 |
|
- | ||||
| 11 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 12 | 903233 | Foam Strip, Insulation | A0 |
|
- | ||||
| 13 | WP912653 | Link, Door Spring (Replaces: 912653) | A0 |
|
Immediately | $ 7.45 | |||
| 14 | Y912836 | Insulation, Access Panel | A0 |
|
- | ||||
| 15 | 912641 | Shield, Tub (blk) | A0 |
|
- | ||||
| 15 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 16 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 16 | 912642 | Cover, Wire (blk) | A0 |
|
- | ||||
| 17 | 912525 | Filler, Access Panel | A0 |
|
- | ||||
| 18 | 912528 | Insert, Access Panel(alm/hwht) | A0 |
|
- | ||||
| 19 | Y913163 | Screw | B4 |
|
- | ||||
| 19 | WP489128 | Screw (Replaces: 912365) | A0 |
|
$ 9.79 | ||||
| 19 | WP912618 | Screw (Replaces: 912618) | A0 |
|
$ 6.98 | ||||
| 20 | 912526 | Trim, Access Panel (formed) | A0 |
|
- | ||||
| 20 | 99001211 | Trim, Access Panel (blk) | B4 |
|
- | ||||
| 21 | 903125 | Panel, Access (assembly) | A0 |
|
- | ||||
| 22 | WP6-920580 | Insulation, Door (Replaces: Y912669) | A0 |
|
$ 28.77 |
