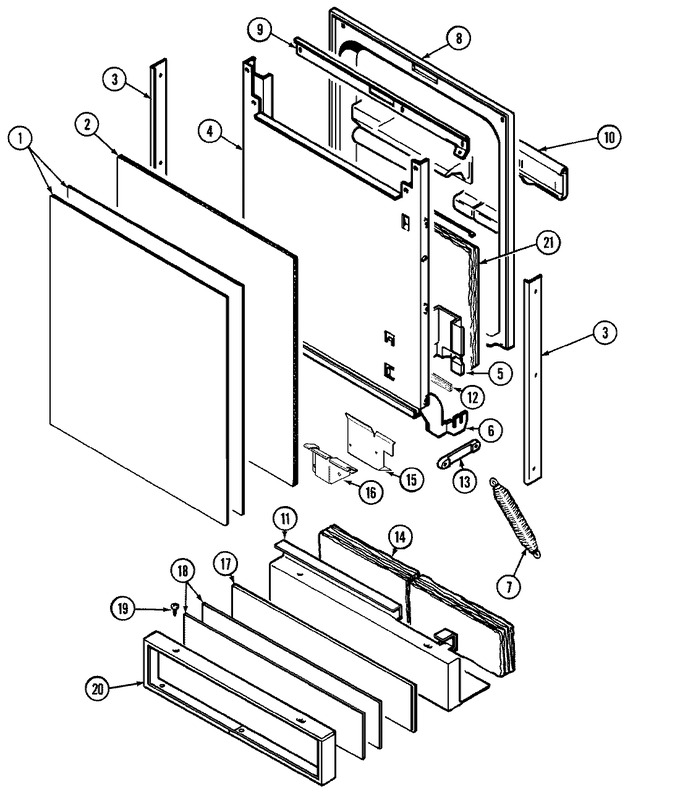

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y913167		Insert, Door Panel (stnlss)	B2	Appelez-nous	-
2	912521		Filler, Front Panel	B2	Appelez-nous	-
3	912619		Screw, Steel	B2			$ 11.60
3	Y912783		Trim, Side (stnls)	B2	Appelez-nous	-
4	WPW10339879		Strap, Cable   (Replaces: 912266)	B2			$ 7.11
4	903821		Door, Outer	B2	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	B2		Immediately	$ 6.90
5	Y912666		Retainer, Wire	B2	Appelez-nous	-
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	B2		Immediately	$ 6.90
6	WP179051		Screw, Hinge----na   (Replaces: 912623)	B2		Immediately	$ 7.16
6	903071		Hinge (rt)	B2	Appelez-nous	-
6	903070		Hinge (lt)	B2	Appelez-nous	-
7	WP912652		Spring, Door   (Replaces: 912652)	B2		Immediately	$ 9.00
8	Y912620		Screw	B2			$ 5.48
8	903867		Door, Inner	B2	Appelez-nous	-
9	Y912668		Bar, Reinforcement	B2	Appelez-nous	-
10	903108		Lid, Detergent Cup	B2	Appelez-nous	-
11	99001189		Panel, Access	B2	Appelez-nous	-
11	WP6-912366		Screw   (Replaces: 912366)	B2			$ 7.29
12	903233		Foam Strip, Insulation	B2	Appelez-nous	-
13	WP912653		Link, Door Spring   (Replaces: 912653)	B2		Immediately	$ 7.45
14	Y912836		Insulation, Access Panel	B2	Appelez-nous	-
15	912641		Shield, Tub (blk)	B2	Appelez-nous	-
16	912642		Cover, Wire (blk)	B2	Appelez-nous	-
16	WP6-912366		Screw   (Replaces: 912366)	B2			$ 7.29
17	912525		Filler, Access Panel	B2	Appelez-nous	-
18	Y913166		Insert, Access Panel (stnlss)	B2	Appelez-nous	-
19	WP912618		Screw   (Replaces: 912618)	B2			$ 6.98
19	WP489128		Screw   (Replaces: 912365)	B2			$ 9.79
20	912526		Trim, Access Panel (formed)	B2	Appelez-nous	-
21	WP6-920580		Insulation, Door   (Replaces: Y912669)	B2			$ 28.77
