02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker Parts
07 - Ice Maker Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

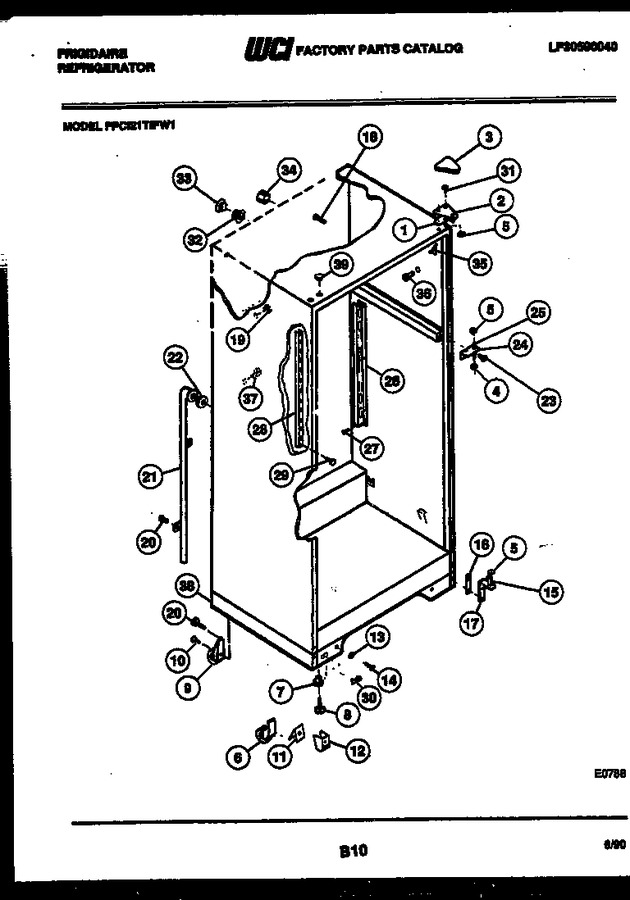

| 1 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 2 | 5308012843 | Hinge-top |
|
$ 71.47 | |||||
| 3 | 5303001666 | Hinge Cover, Coffee |
|
- | |||||
| 4 | 5303001038 | Washer-nylon |
|
$ 13.34 | |||||
| 5 | 5308000007 | Washer-nylon (3) |
|
- | |||||
| 6 | 5308009760 | Roller, Front (2) |
|
- | |||||
| 7 | 5308003584 | Nut-anchor (2) |
|
$ 7.30 | |||||
| 8 | 5303205540 | Screw, Leveling (2) |
|
- | |||||
| 9 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 10 | 5308009762 | Bolt, Roller Mtg (2) |
|
- | |||||
| 11 | 5308009790 | Spring, Roller Adj (2) |
|
$ 4.30 | |||||
| 12 | 5308013678 | Support, Base (2) |
|
- | |||||
| 13 | 5308011326 | Washer (2) |
|
$ 9.87 | |||||
| 14 | 5308009761 | Bolt, Roller Adj (2) |
|
$ 18.61 | |||||
| 15 | 5303001321 | Pin, Bottom Hinge |
|
$ 17.25 | |||||
| 16 | 5303001323 | Shim, Bottom Hinge |
|
- | |||||
| 17 | 5303202834 | Bracket, Bottom Hinge |
|
$ 89.41 | |||||
| 18 | 5308000097 | Support-coil Cover |
|
- | |||||
| 19 | 5308016571 | Plug-frzr Liner (3) |
|
$ 4.79 | |||||
| 20 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 21 | 5303001458 | Drain Tube |
|
- | |||||
| 22 | 5303207353 | Ring Seal, Tube |
|
$ 6.81 | |||||
| 23 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 24 | 5303001369 | Bracket-ctr Hinge |
|
- | |||||
| 25 | 5308000184 | Pin, Ctr Hinge |
|
$ 8.87 | |||||
| 26 | 5308000302 | Channel-rs & Ls |
|
- | |||||
| 27 | 5308010253 | Screw, Mtg (6) |
|
- | |||||
| 28 | 5303015409 | Channel Center |
|
- | |||||
| 29 | 5308016568 | Screw-mtg (3) |
|
- | |||||
| 30 | 5303001478 | Plug, Hinge Hole |
|
- | |||||
| 31 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 32 | 5303001286 | Ferrule-inner |
|
- | |||||
| 33 | 5303001287 | Ferrule-outer |
|
- | |||||
| 34 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 35 | 5303202339 | Corner Trim - Coffee |
|
- | |||||
| 36 | 5304509705 | Grommet, Shelf (2) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 37 | 5304500407 | Grommet, Shelf (2) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 38 | 5308010092 | Base, Cabinet |
|
- | |||||
| 39 | 5303001679 | Plug, Coffee |
|
- | |||||
| 17A | 5303001320 | Screw-hinge Mtg (2) (non-illustrated) |
|
- | |||||
| 17B | 5308012296 | Plate-tapping (2) (non-illustrated) |
|
$ 47.44 | |||||
| 23A | 5303206754 | Washer-steel (4) (non-illustrated) |
|
- | |||||
| 2A | 5308012296 | Plate-tapping (2) (non-illustrated) |
|
$ 47.44 |
