New Model Search:

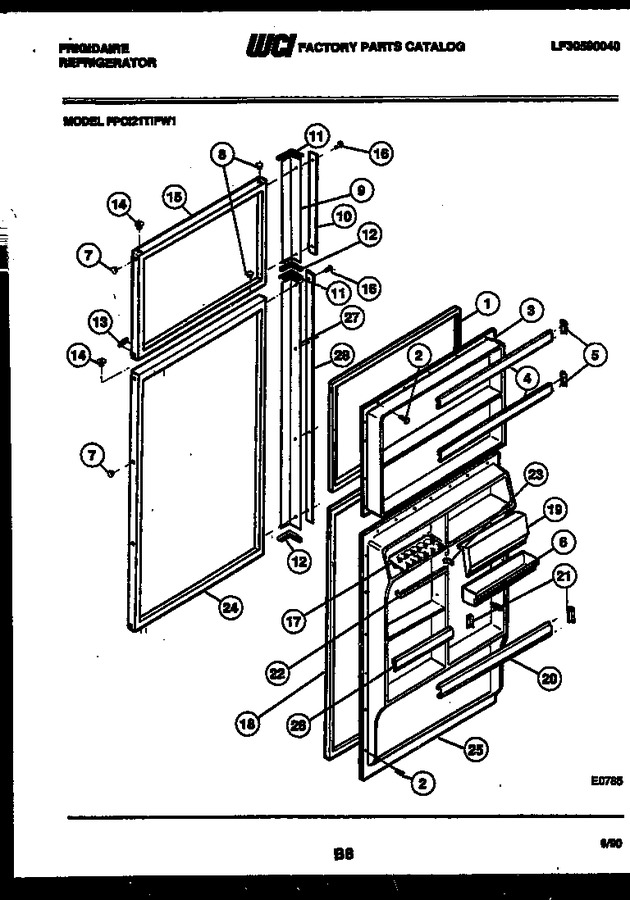

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017483 | Gasket, Freezer |
|
- | |||||
| 2 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 3 | 3019030 | Panel, Inner Freezer |
|
- | |||||
| 4 | 3017419 | Rack, Freezer (2) |
|
- | |||||
| 5 | 5303323480 | Support, Rh (2) (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6 | 3018973 | Bin-utility |
|
- | |||||
| 7 | 240494001 | Button Plug-white (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 8 | 5308000134 | Button Plug-white |
|
$ 5.62 | |||||
| 9 | 5308017493 | Handle-complete |
|
- | |||||
| 10 | 5308010229 | Trim-handle |
|
- | |||||
| 11 | 5308010239 | Cap, Top (2) |
|
- | |||||
| 12 | 5308010238 | Cap, Bottom (2) |
|
- | |||||
| 13 | 3201526 | Nameplate |
|
- | |||||
| 14 | 5308012007 | Bearing (8) |
|
- | |||||
| 15 | 5308013666 | Panel-freezer-white |
|
- | |||||
| 16 | 5308013645 | Screw (6) |
|
- | |||||
| 17 | 5303018932 | Tray-egg |
|
- | |||||
| 18 | 5308017487 | Gasket-refr |
|
- | |||||
| 19 | 3018974 | Door-dairy |
|
- | |||||
| 20 | 3017420 | Rack-refr Door |
|
- | |||||
| 21 | 5303325990 | Support, Rh (2) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 22 | 3019031 | Rack-refr Door |
|
- | |||||
| 23 | 5303323480 | Support, Rh (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 24 | 5308009928 | Panel, Refr (white) |
|
- | |||||
| 25 | 3019032 | Panel-inner Refr |
|
- | |||||
| 26 | 3017421 | Rack-refr Door |
|
- | |||||
| 27 | 5308017497 | Handle-complete |
|
- | |||||
| 28 | 5308010229 | Trim-handle |
|
- | |||||
| *32957 | 3305117 | Snugger-finger |
|
- | |||||
| 15A | 5308000255 | Stop-door (non-illustrated) |
|
$ 42.20 | |||||
| 15B | 5308011745 | Screw |
|
$ 10.38 | |||||
| 21A | 5303203263 | Support-lh (2) (non-illustrated) |
|
- | |||||
| 23A | 5303323481 | Support, Lh (non-illustrated) (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 24A | 5308000255 | Stop-door (non-illustrated) |
|
$ 42.20 | |||||
| 24B | 5308011745 | Screw |
|
$ 10.38 | |||||
| 5A | 5303323481 | Support, Lh (2) (non-illustrated) (Replaces: 5303017381) |
|
Immediately | $ 14.18 |
