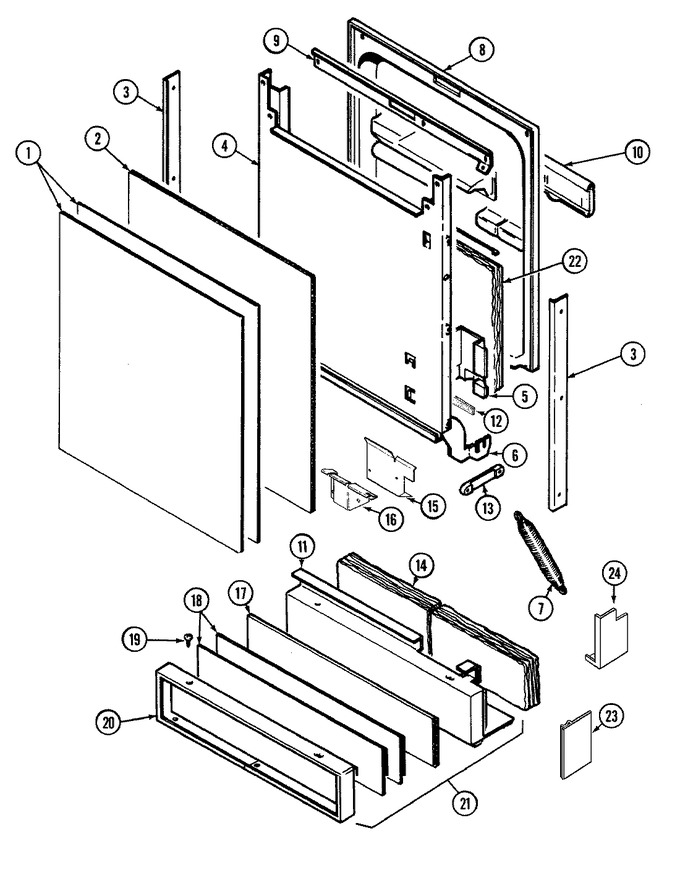

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower
02 - Door
03 - Pump & Motor
04 - Racks
05 - Rinse Aid & Soap Dispenser
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 912519 | Insert, Front Panel (al/wheat) | A0 |
|
- | ||||
| 1 | 99001244 | Trim, Panel (lwr-alm) | B4 |
|
- | ||||
| 1 | 912024 | Rivet | A0 |
|
- | ||||
| 1 | 912520 | Insert, Front Panel (wht/blk) | A0 |
|
$ 48.54 | ||||
| 1 | 912522 | Trim, Bottom (stnls) | A0 |
|
- | ||||
| 2 | 912521 | Filler, Front Panel | A0 |
|
- | ||||
| 3 | 912619 | Screw, Steel | A0 |
|
$ 11.60 | ||||
| 3 | Y912783 | Trim, Side (stnls) | A0 |
|
- | ||||
| 3 | 99001242 | Trim, Door (alm) | B4 |
|
- | ||||
| 3 | 99001243 | Screw, Trim Strip (alm) | B4 |
|
- | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 4 | WPW10339879 | Strap, Cable (Replaces: 912266) | A0 |
|
$ 7.11 | ||||
| 4 | 903821 | Door, Outer | A0 |
|
- | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 5 | Y912666 | Retainer, Wire | A0 |
|
- | ||||
| 6 | 903071 | Hinge (rt) | A0 |
|
- | ||||
| 6 | WP179051 | Screw, Hinge----na (Replaces: 912623) | A0 |
|
Immediately | $ 7.16 | |||
| 6 | 903070 | Hinge (lt) | A0 |
|
- | ||||
| 7 | WP912652 | Spring, Door (Replaces: 912652) | A0 |
|
Immediately | $ 9.00 | |||
| 8 | Y912620 | Screw | A0 |
|
$ 5.48 | ||||
| 8 | 99001092 | Door Assy. (w/damper) | A0 |
|
- | ||||
| 9 | Y912668 | Bar, Reinforcement | A0 |
|
- | ||||
| 10 | 903108 | Lid, Detergent Cup | A0 |
|
- | ||||
| 11 | 912636 | Panel, Access (blk) | A0 |
|
- | ||||
| 11 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 12 | 903233 | Foam Strip, Insulation | A0 |
|
- | ||||
| 13 | WP912653 | Link, Door Spring (Replaces: 912653) | A0 |
|
Immediately | $ 7.45 | |||
| 14 | Y912836 | Insulation, Access Panel | A0 |
|
- | ||||
| 15 | 912641 | Shield, Tub (blk) | A0 |
|
- | ||||
| 15 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 16 | 912642 | Cover, Wire (blk) | A0 |
|
- | ||||
| 16 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 17 | 912525 | Filler, Access Panel | A0 |
|
- | ||||
| 18 | 912528 | Insert, Access Panel(alm/hwht) | A0 |
|
- | ||||
| 19 | WP489128 | Screw (Replaces: 912365) | A0 |
|
$ 9.79 | ||||
| 19 | WP912618 | Screw (Replaces: 912618) | A0 |
|
$ 6.98 | ||||
| 19 | 99001246 | Screw (top-alm) | B4 |
|
- | ||||
| 20 | 99001245 | Trim, Access Panel (alm) | B4 |
|
- | ||||
| 20 | 912526 | Trim, Access Panel (formed) | A0 |
|
- | ||||
| 21 | 99001091 | Panel Assy., Access | A0 |
|
- | ||||
| 22 | Y912752 | Damper, Sound (top) | A0 |
|
- | ||||
| 22 | Y912751 | Damper, Sound (btm) | A0 |
|
- | ||||
| 22 | WP6-920580 | Insulation, Door (Replaces: Y912669) | A0 |
|
$ 28.77 | ||||
| 23 | 99001206 | Barrier (blk) | A0 |
|
- | ||||
| 24 | Y912809 | Shield, Access Panel (rt) | A0 |
|
- | ||||
| 24 | WP4312464 | Screw (Replaces: 912197) | A0 |
|
$ 6.26 | ||||
| 24 | Y912811 | Shield, Wiring-canada | A0 |
|
- | ||||
| 24 | Y912810 | Shield, Access Panel (lt) | A0 |
|
- |
