SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

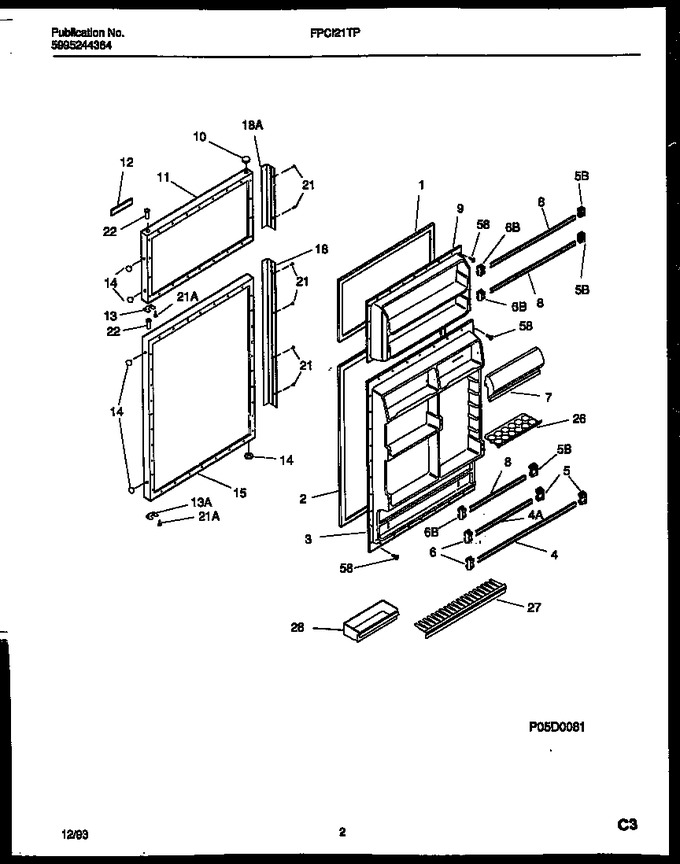

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308017483		Gasket, Frzr Door, Magnetic		Appelez-nous	-
2	5308017487		Gasket, Refr Door, Magnetic		Appelez-nous	-
3	3019032		Panel-inner Door, Refr		Appelez-nous	-
4	3017420		Rack, Door		Appelez-nous	-
5	5303325990		Support-door Rack, Rh   (Replaces: 5303203262)			Immediately	$ 17.01
6	5303203263		Support-door Rack, Lh		Appelez-nous	-
7	3018974		Door-dairy (small)		Appelez-nous	-
8	3017419		Rack-door, (3)		Appelez-nous	-
9	3019030		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	3916119		Panel-frzr Door, Almond, W/ Insulation		Appelez-nous	-
12	3201526		Nameplate Assy		Appelez-nous	-
13	5308000255		Door Stop-frzr				$ 42.20
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303916625		Panel-refr Door, Almond, W/ Insulation, & Cross Brace		Appelez-nous	-
18	5303272663		Handle-door, Full-length, Almond, W/ End Caps		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Almo		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	5303018932		Tray-egg		Appelez-nous	-
27	3205117		Snugger-door Rack, ``finger Type``		Appelez-nous	-
28	3018973		Bin-utility		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*89806	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5303212491		Door Stop, Refr		Appelez-nous	-
18A	5303272795		Handle-door, Almond, W/ End Caps		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
4A	3017421		Rack-door		Appelez-nous	-
5B	5303323480		Support, Door Rack, Rh   (Replaces: 5303017378)				$ 14.18
6B	5303323481		Support, Door Rack, Lh   (Replaces: 5303017381)			Immediately	$ 14.18
7A	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
