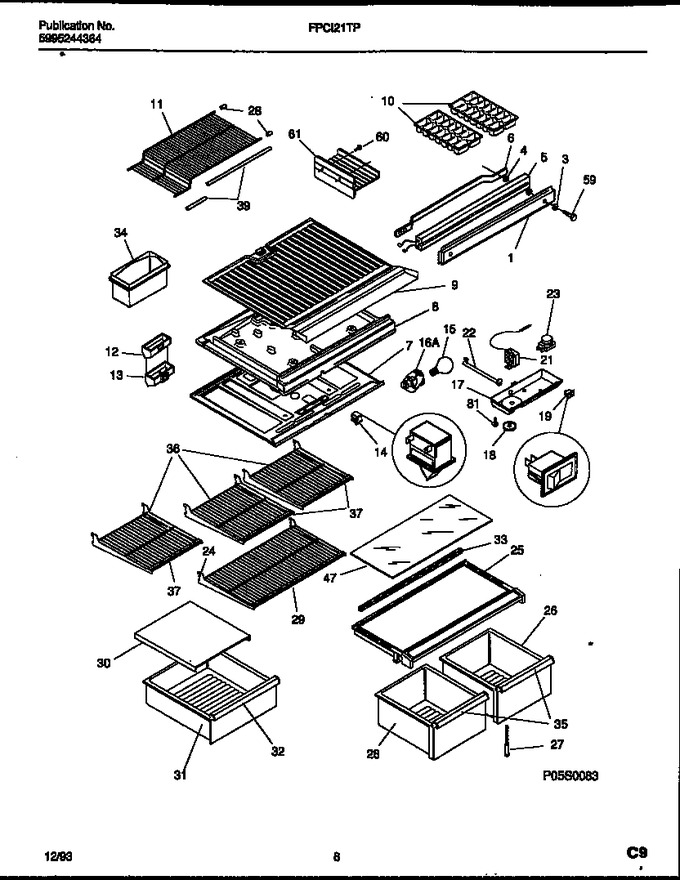

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200366		Mullion, White				$ 70.04
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg, Steel		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	3019038		Top Panel-refr		Appelez-nous	-
8	5303019039		Divider, Styrofoam		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	3019033		Shelf-freezer Step		Appelez-nous	-
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	3018895		Box, Control		Appelez-nous	-
18	3018893		Knob, Temp Control		Appelez-nous	-
19	5303018896		Switch, Energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	5303273155		Shelf-cantilever, Full, (2)		Appelez-nous	-
25	5303019035		Cover, Crisper Pan		Appelez-nous	-
26	5303299801		Pan-crisper, Lh		Appelez-nous	-
27	5303206507		Support, Crisper Cvr, Adjustable		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	5303272820		Trim, Full Shelf, (3)		Appelez-nous	-
30	3018988		Cover-meat Pan		Appelez-nous	-
31	5303299812		Pan-meat		Appelez-nous	-
32	5303272530		Trim, Meat Pan		Appelez-nous	-
33	5303200329		Gasket-crisper Cvr, 13.25``		Appelez-nous	-
34	5303212895		Container, Ice		Appelez-nous	-
35	5303272523		Trim, Crisper Pan, Lh		Appelez-nous	-
36	5303208416		Shelf-half, Wire		Appelez-nous	-
37	5303272797		Trim-half Shelf, Snap-on		Appelez-nous	-
39	5303272521		Trim, Frzr Shelf, Short		Appelez-nous	-
47	3200389		Insert-pan Cover, Glass		Appelez-nous	-
59	5308012258		Screw				$ 2.25
60	5308010253		Screw		Appelez-nous	-
61	215781501		Shelf-ice Tray, Wire				$ 136.19
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*89820	5308010253		Screw		Appelez-nous	-
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation (non-illustrated)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
25A	3018984		Trim, Crisper Cover (non Illustrated)		Appelez-nous	-
26A	5303301062		Pan-crisper, Rh		Appelez-nous	-
30A	3018991		Rail-meat Kpr Cover, Offset (non-illustrated)		Appelez-nous	-
30B	3018992		Rail-meat Kpr Cover, Straight (non-illustrated)		Appelez-nous	-
35A	5303272529		Trim, Crisper Pan, Rh		Appelez-nous	-
37A	215339900		Clip-cantilevr Shlf (non-illustrated)				$ 5.83
39A	5303272796		Trim, Frzr Shelf, Long		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	3019040		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
8B	3205266		Protector-edge (non-illustrated)				$ 80.09
