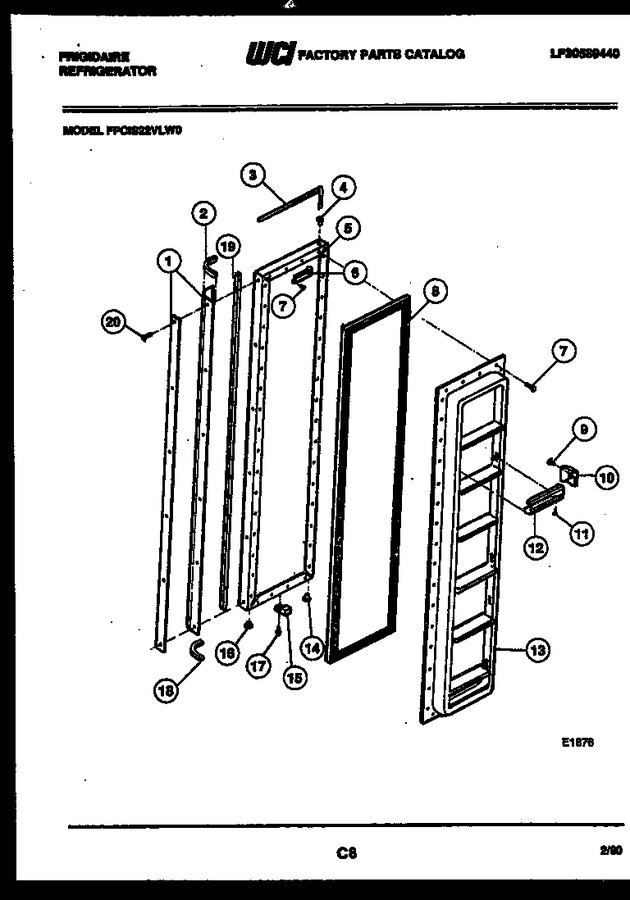

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08017423 | Handle Assy-door |
|
- | |||||
| 2 | 08010239 | End Cap-top |
|
- | |||||
| 4 | 08012008 | Bearing-hinge |
|
- | |||||
| 5 | 08017625 | Panel-freezer Avoc |
|
- | |||||
| 6 | 3200272 | Closer-door |
|
- | |||||
| 7 | 08002748 | Screw |
|
- | |||||
| 8 | 3200733 | Gasket-freezer |
|
- | |||||
| 9 | 08000812 | Screw |
|
- | |||||
| 10 | 5303206719 | Support-shelf Rh (6) |
|
- | |||||
| 11 | 08002773 | Rivet (24) |
|
- | |||||
| 12 | 3206367 | Rack (6) |
|
- | |||||
| 13 | 3018764 | Panel-inner |
|
- | |||||
| 14 | 08012007 | Bearing-hinge |
|
- | |||||
| 15 | 08000790 | Bumper-light Switch |
|
- | |||||
| 16 | 08002751 | Plug Button |
|
- | |||||
| 17 | 08000839 | Screw |
|
- | |||||
| 18 | 08010238 | End Cap-bottom |
|
- | |||||
| 19 | 08010229 | Trim-handle |
|
- | |||||
| 20 | 08013645 | Screw (6) |
|
- | |||||
| 10A | 5303206605 | Support-shelf Lh (6) (non-illustrated) |
|
- |
