SELECT A DIAGRAM

01 - Blower, Float & Water Level Switch (b.c)

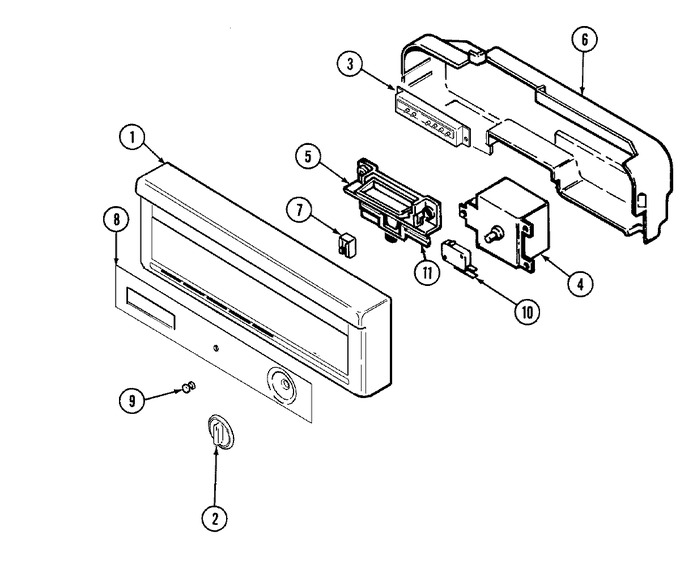

02 - Control Panel (blue Creek)


03 - Door (blue Creek)


04 - Pump & Motor (blue Creek)


05 - Rinse Aid & Soap Dispenser (blue Creek)


06 - Track & Rack Assembly (blue Creek)


07 - Tub (blue Creek)


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
1	99001941		Panel, Control (blk-stnls)	10	Appelez-nous	-
2	99001318		Knob, Timer (blk)	10			$ 33.47
2	99001698		Ring, Decorator (stnls)	10	Appelez-nous	-
3	99001671		Switch, Control (6-but.)	10	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
4	99001672		Timer	10	Appelez-nous	-
4	99001931		Timer	17			$ 169.49
5	99002254		Holder, Door Switch   (Replaces: 99001077)	10			$ 116.79
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
6	99001694		Barrier, Control Panel	10	Appelez-nous	-
7	903115		Lock Light	10			$ 5.70
8	99001675		Overlay, Control Panel (stnls)	10	Appelez-nous	-
9	99001319		Lens, Mini-convex	10	Appelez-nous	-
10	99002254		Switch, Door   (Replaces: 903086)	10			$ 116.79
11	99001097		Cover, Handle Hole	10	Appelez-nous	-
11	99001080		Handle, Latch (blk)	10	Appelez-nous	-
12	99001645		Wire Harness, Main	10	Appelez-nous	-
13	99001563		Manual, Use & Care	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
