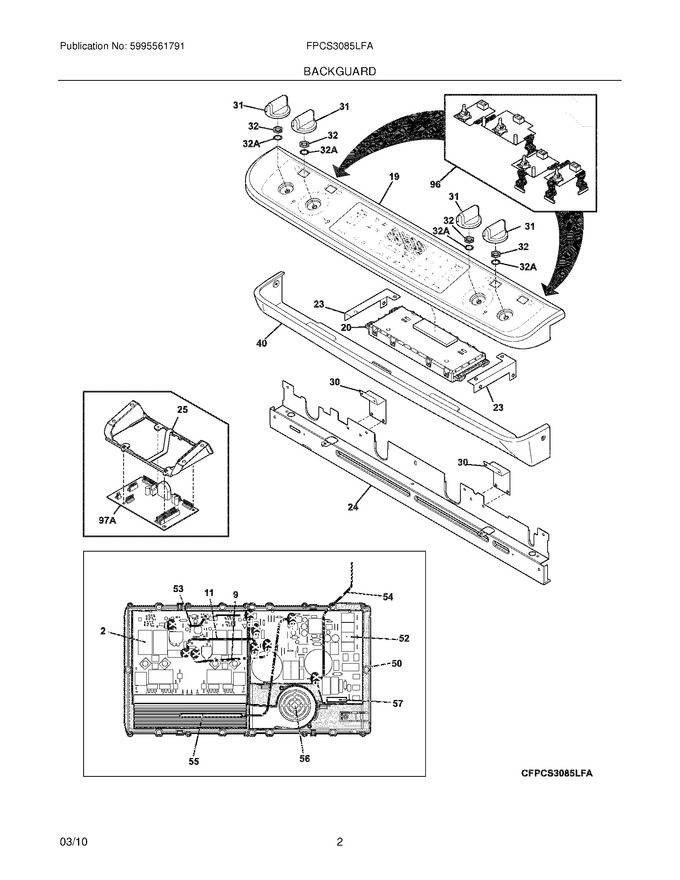

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	318921300		Bracket,control Mtg ,(2)				$ 17.64
24	318913112		Trim,vent ,black ,upper		Appelez-nous	-
25	318917700		Chassis,uib Mounting				$ 91.46
30	318928502		Bracket,control Panel ,rear ,(2)   (Replaces: 318928500)				$ 15.60
31	316564406		Knob,control ,stainless				$ 155.22
32	316247700		Nut,mounting				$ 18.20
40	318912907		Panel,service ,silver				$ 302.40
32A	316247800		Washer,lock ,mtg				$ 18.20
F11	318052579		Power Cable Set,generator ,6`` ,black ,to Filter,x2/x7-x2/x56		Appelez-nous	-
F19	318922144		Panel Assembly,control ,stainless ,w/overlay   (Replaces: 318922148)			Immediately	$ 535.34
F2	318347100		Generator,circuit Board ,(2) ,2 Zone				$ 512.24
F20	316560143		Controller,electronic ,es530w3				$ 363.97
F50	318329620		Housing Assembly,induction ,small ,w/electronics				$ 765.03
F52	318347010		Filter,circuit Board ,small				$ 769.61
F53	318348002		Communication Cable,generator ,8`` ,to Filter,x10/x58		Appelez-nous	-
F54	318052578		Ground Wire,x54/6		Appelez-nous	-
F55	318349910		Thermal Cut-out,long		Appelez-nous	-
F56	318346910		Cooling Fan Assembly,small				$ 679.21
F57	318373300		Fuse,fast Blow ,20a				$ 59.54
F9	318052580		Power Cable Set,generator ,6`` ,blue ,to Filter,(2) ,x1/x8-x1/x55		Appelez-nous	-
F96	318414300		Control Assembly,complete ,rotary ,w/4 Controls				$ 428.98
F97A	316442073		Board,power ,uib				$ 212.47
FNI	318402398		Harness,wiring ,interface				$ 22.58
FNI	318224841		Harness,wiring ,timer				$ 78.07
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	5304447071		Clip,console ,(2)		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	316519700		Screw,no.8-18 X 3/8   (Replaces: 5304454881)				$ 10.02
