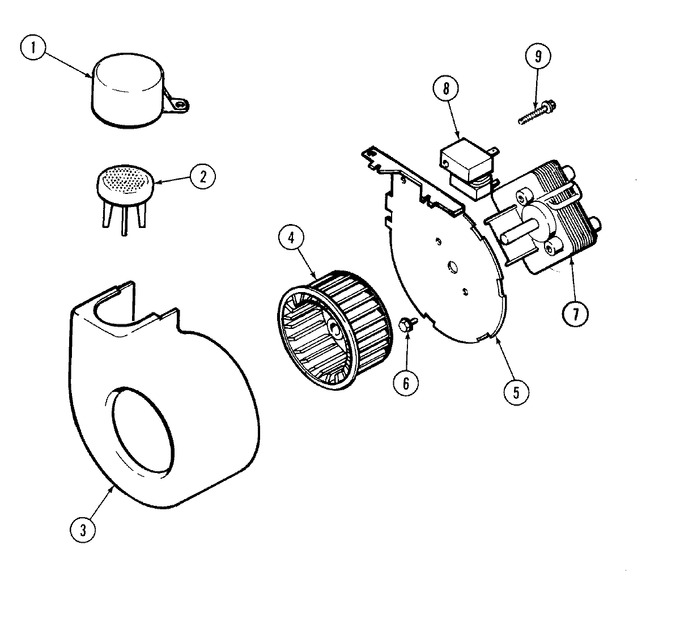

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 912622 | Screw | 10 |
|
- | ||||
| 1 | Y912659 | Cap, Air Inlet | 10 |
|
- | ||||
| 2 | Y913085 | Baffle, Water | 10 |
|
- | ||||
| 2 | Y912660 | Screen, Blower Valve | 10 |
|
- | ||||
| 3 | 912556 | Housing, Blower | 10 |
|
- | ||||
| 4 | 902902 | Wheel, Blower | 10 |
|
- | ||||
| 5 | 912557 | Plate, Blower | 10 |
|
- | ||||
| 5 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 6 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 7 | 902900 | Motor, Blower | 10 |
|
- | ||||
| 8 | 903482 | Relay, Motor | 10 |
|
- | ||||
| 9 | 912612 | Screw, Relay | 10 |
|
- |
