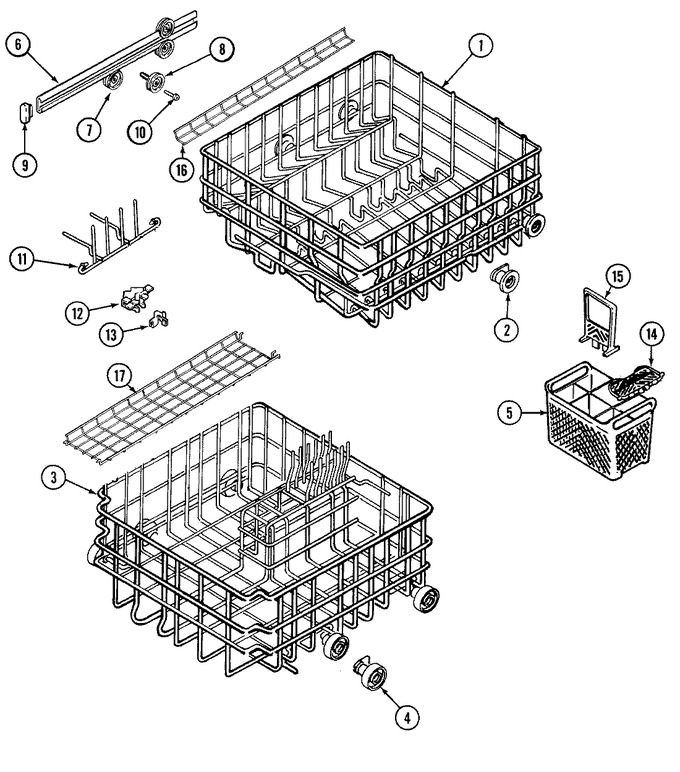

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903918		Rack (upr)	10	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	10		Immediately	$ 9.65
3	99001667		Rack Assembly (lwr)	10	Appelez-nous	-
4	903815		Wheel Assembly (lwr)	10			$ 14.89
5	WP99001576		Basket, Silverware (w/cover)   (Replaces: 99001663)	10		Immediately	$ 44.53
6	Y912545		Track, Rack	10			$ 40.33
7	912548		Wheel, Tub	10	Appelez-nous	-
8	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	10			$ 6.90
9	WP99002136		Stop, Rack   (Replaces: 912938)	10			$ 12.78
10	WP99002947		Shaft, Tub Wheel   (Replaces: 912549)	10		Immediately	$ 10.58
11	99001660		Tine, Fold Down	10	Appelez-nous	-
11	99001661		Tine, Fold Down	10	Appelez-nous	-
11	99001662		Tine, Fold Down	10	Appelez-nous	-
12	99001652		Clip, Tine	10	Appelez-nous	-
13	99001653		Latch, Tine	10	Appelez-nous	-
14	WP99001576		Cover, Silverware Basket   (Replaces: 99001664)	10		Immediately	$ 44.53
15	99001665		Handle, Silverware Basket	10	Appelez-nous	-
16	Y912984		Clip, Upper Rack Shelf	10	Appelez-nous	-
16	903861		Shelf, Upper Rack	10	Appelez-nous	-
17	903859		Insert, Lower Rack	10	Appelez-nous	-
