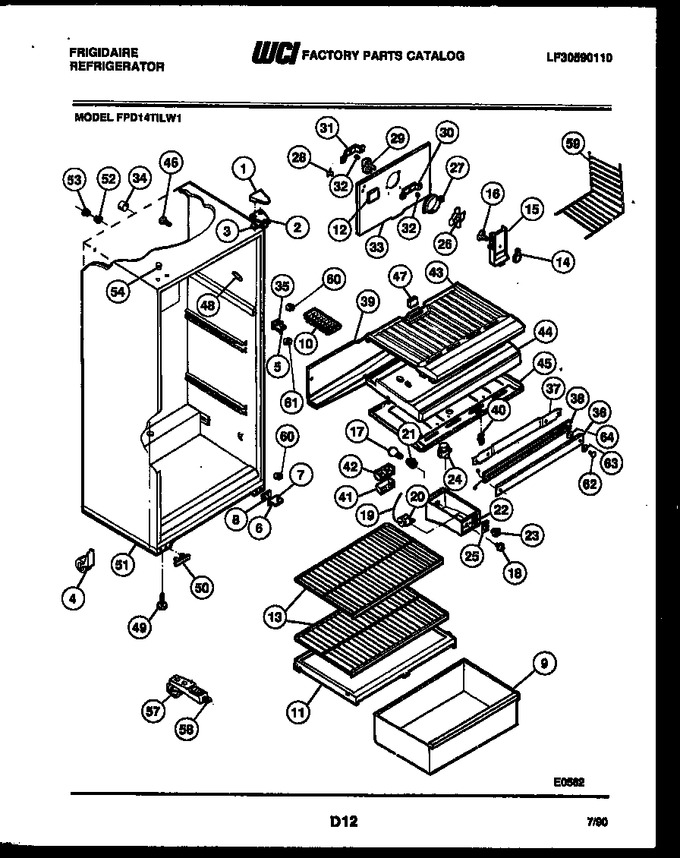

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 49 | 5303001386 | Tube - Drain |
|
- | |||||
| 50 | 5303001478 | Plug, Hinge Hole |
|
- | |||||
| 51 | 5303006068 | Cabinet Base |
|
- | |||||
| 52 | 5303001286 | Ferrule-inner |
|
- | |||||
| 53 | 5303001287 | Ferrule-outer |
|
- | |||||
| 54 | 5303001388 | Plug - Hinge - White |
|
$ 2.60 | |||||
| 57 | 5300188673 | Roller Assy (2) |
|
- | |||||
| 58 | 5303001403 | Bolt |
|
- | |||||
| 59 | 5303001570 | Shelf I/m |
|
- | |||||
| 60 | 5308003607 | Washer Hinge (2) |
|
$ 1.00 | |||||
| 61 | 5308000186 | Washer - Hinge |
|
Immediately | $ 6.02 | ||||
| 62 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 63 | 5308003607 | Washer Mullion (2) |
|
$ 1.00 | |||||
| 64 | 3001370 | Spacer, Mullion (2) |
|
- | |||||
| *34454 | 08000087 | Plug-refr Liner (2) |
|
- | |||||
| *34454 | 5308016571 | Plug - Freeze Liner (8) |
|
$ 4.79 | |||||
| 57A | 5308009790 | Spring (non-illustrated) |
|
$ 4.30 | |||||
| 58A | 5308011326 | Washer Nylon (non-illustrated) |
|
$ 9.87 | |||||
| 59A | 5308010253 | Screws Mtg (4) (non-illustrated) |
|
- | |||||
| 59B | 5308000214 | Support (2) (non-illustrated) |
|
- | |||||
| 59C | 5303001562 | Hanger (non-illustrated) |
|
- |
