02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

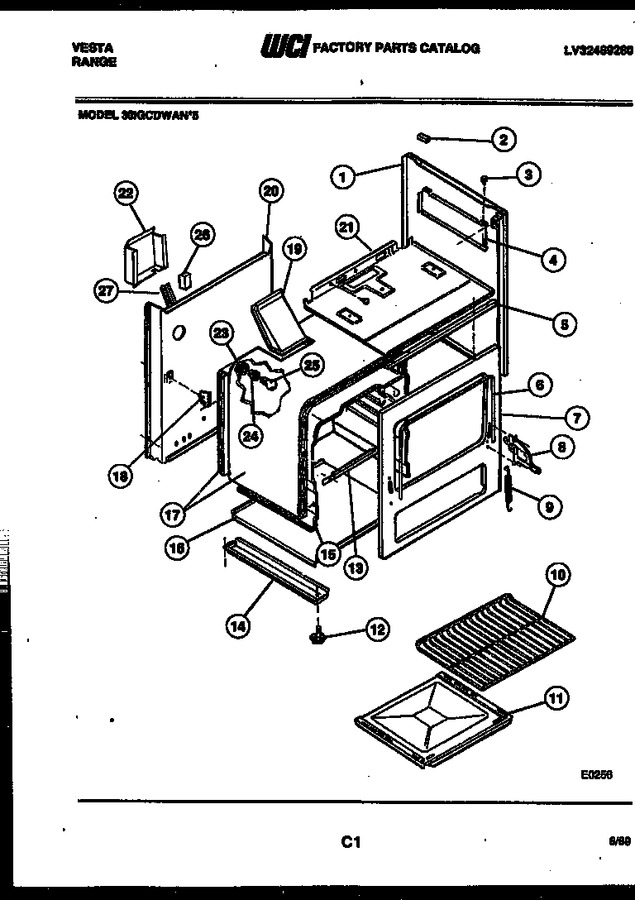

| 1 | 3051061 | Panel - Sde (white) |
|
- | |||||
| 2 | 3205587 | Grommet-top Rear (2) |
|
- | |||||
| 3 | 3051063 | Grommet-top Front (2) |
|
- | |||||
| 4 | 3131053 | Shield - Heat Rh |
|
- | |||||
| 5 | 3131811 | Support-control Panel |
|
- | |||||
| 6 | 08008022 | Seal - Door |
|
- | |||||
| 7 | 3205578 | Frame - Front |
|
- | |||||
| 8 | 3204670 | Hinge - Door Rh |
|
- | |||||
| 9 | 08008028 | Spring (2) |
|
- | |||||
| 10 | 3015714 | Rack (2) |
|
- | |||||
| 11 | 3018282 | Panel - Bottom |
|
- | |||||
| 12 | 3051080 | Screw - Levelling (4) |
|
- | |||||
| 13 | 3131038 | Support-oven Bottom |
|
- | |||||
| 14 | 08008047 | Rail - Base (2) |
|
- | |||||
| 15 | 3018709 | Liner-side Rh |
|
- | |||||
| 15 | 3018710 | Liner-side Lh |
|
- | |||||
| 16 | 3011645 | Bottom-oven |
|
- | |||||
| 17 | 3017171 | Insulation - Wrap |
|
- | |||||
| 18 | 3051096 | Support-rear (2) |
|
- | |||||
| 19 | 3017173 | Vent - Flue |
|
- | |||||
| 20 | 3013340 | Back-main |
|
- | |||||
| 21 | 3017174 | Burner Box Bottom |
|
- | |||||
| 22 | 08013953 | Cover-spark Module |
|
- | |||||
| 23 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 24 | 3131807 | Receptacle-oven Light |
|
- | |||||
| 25 | 3013071 | Bulb-light |
|
- | |||||
| 15A | 3018713 | Liner-top |
|
- | |||||
| 15B | 3018712 | Liner-back |
|
- | |||||
| 17A | 3017172 | Insulation - Back |
|
- | |||||
| 21A | 3934059 | Anti - Tip Bracket (non-illustrated) |
|
- | |||||
| 21B | 3131791 | Clip B/s Corner (non-illustrated) |
|
$ 19.01 | |||||
| 4A | 3131054 | Shield - Heat Lh |
|
- | |||||
| 8A | 3204672 | Hinge - Door Lh |
|
- |
