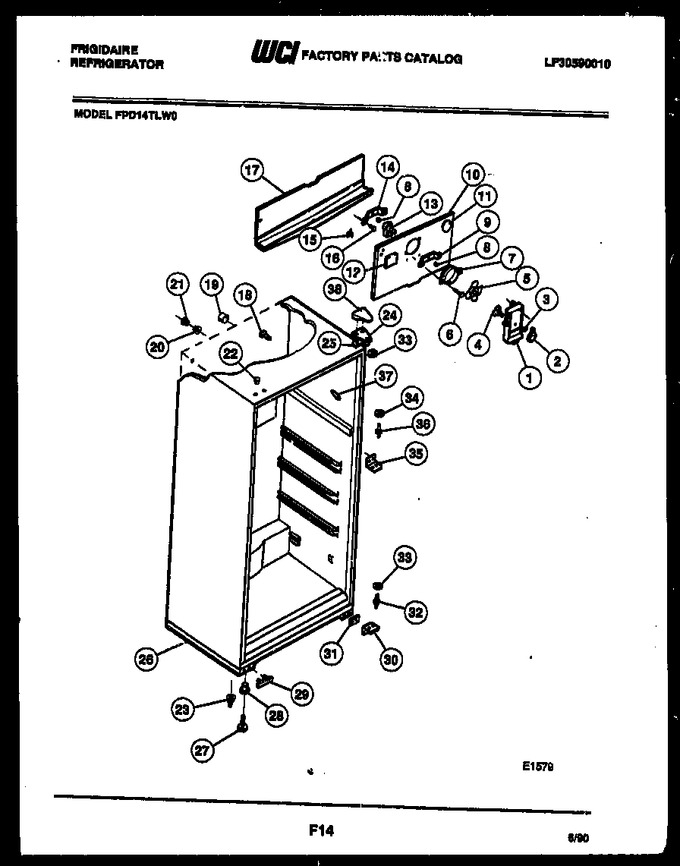

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018426		Cover, Fan		Appelez-nous	-
2	5308009793		Knob, Damper Control		Appelez-nous	-
3	5303001028		Push-nut		Appelez-nous	-
4	5303001331		Damper, Fan				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
6	218843801		Screw   (Replaces: 5303001001)				$ 14.41
7	5308000124		Orifice Ring				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303001226		Bracket-front		Appelez-nous	-
10	3001358		Cover, Evaporator Coil		Appelez-nous	-
11	5303203044		Plug-short Test Hole		Appelez-nous	-
12	5308013636		Plug, Decorative		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303001227		Bracket-rear		Appelez-nous	-
15	5308000107		Bracket-connector				$ 33.23
16	218843801		Screw   (Replaces: 5303001001)				$ 14.41
17	08003638		Drain Trough		Appelez-nous	-
18	5308000097		Support, Coil Cover (2)		Appelez-nous	-
19	5303001198		Tube, Rubber (2)		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001388		Plug, White (2)				$ 2.60
23	5303001386		Drain Tube		Appelez-nous	-
24	5308012843		Hinge-top				$ 71.47
25	5303001037		Shim, Top Hinge				$ 12.39
26	5303006086		Cabinet Base		Appelez-nous	-
27	5303205540		Leveling Screw (2)		Appelez-nous	-
28	5308003584		Anchor Nut (2)				$ 7.30
29	5303001478		Plug, Hinge Hole		Appelez-nous	-
30	5308010251		Bracket, Bottom Hinge		Appelez-nous	-
31	5303001323		Shim, Bottom Hinge		Appelez-nous	-
32	5303001321		Pin, Bottom Hinge				$ 17.25
33	5308000007		Washer, 1/4 Nylon (2)		Appelez-nous	-
34	5308000186		Washer, Nylon			Immediately	$ 6.02
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5308003582		Corner Trim, White (4)		Appelez-nous	-
38	5308012820		Hinge Cover, White		Appelez-nous	-
*31281	5308012296		Tapping Plate (4)				$ 47.44
*31281	5308016571		Plug-freezer Liner (8)				$ 4.79
10A	5308000126		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
10B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
1A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
24A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
2A	08009823		Label, Knob (non-illustrated)		Appelez-nous	-
30A	5303001320		Screw, Hinge Mounting (2) (non-illustrated)		Appelez-nous	-
35A	5308012258		Screw				$ 2.25

    View Diagram in Separate Window       Print Part List
