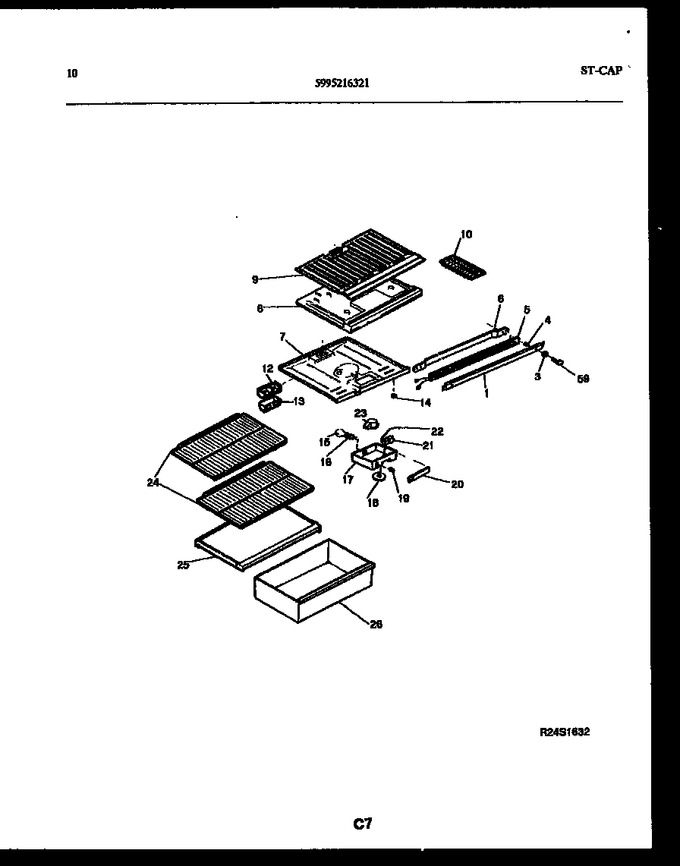

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3916132 | Mullion, Wheat |
|
- | |||||
| 1 | 5303916134 | Mullion, Almond |
|
- | |||||
| 1 | 5303200465 | Mullion, White |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 5308017408 | Heater-mullion |
|
- | |||||
| 6 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 7 | 5303015448 | Top Panel-refr, W/ Snap Bushing |
|
- | |||||
| 8 | 5308000759 | Divider, Styrofoam |
|
- | |||||
| 9 | 5308000748 | Bottom Panel, Frzr |
|
- | |||||
| 10 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5308009730 | Box-control |
|
- | |||||
| 18 | 08006978 | Knob-temp Control |
|
- | |||||
| 19 | 5308016615 | Switch-energy Saver |
|
- | |||||
| 20 | 08006988 | Label, Control Box |
|
- | |||||
| 21 | 5308015762 | Control, Temperature |
|
- | |||||
| *56907 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 17A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 7B | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 8A | 3001383 | Wiring Harness, Control/divider (non-illustrated) |
|
- |
