Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303001304 Gasket-frzr Door, Magnetic Appelez-nous -
2 5303001317 Gasket-refr Door, Magnetic Appelez-nous -
3 3018418 Panel-inner Door, Refr Appelez-nous -
4 3018420 Rack-door, Refrigerator, (2) Appelez-nous -
5 5303205650 Support-door Rack, Rh, (2) Appelez-nous -
6 5303205648 Support-door Rack, Lh, (2) Appelez-nous -
7 5303018419 Door-dairy Appelez-nous -
8 3018417 Rack-door, Freezer, (2) Appelez-nous -
9 3018416 Panel-inner Door, Frzr Appelez-nous -
10 5303001308 Button Plug, Almond, Hinge Brg Hole Appelez-nous -
11 5303916222 Panel-frzr Door, Almond Appelez-nous -
12 3201526 Nameplate Assy Appelez-nous -
13 5308000255 Door Stop, Frzr/refr, (2) Special Order $ 42.20

14 5308000181 Button Plug, Almond, Handle/dr Stop Appelez-nous -
15 5303916227 Panel-refr Door, Almond Appelez-nous -
18 5303272563 Handle-door, Almond, Refr/frzr, (2) Appelez-nous -
4A 3018423 Rack-door, Upper-refrig Appelez-nous -
5A 5303323480 Support-door Rack-rh (3)   (Replaces: 5303017378) Special Order $ 14.18

6A 5303323481 Support-door Rack-lh (3)   (Replaces: 5303017381) In-Stock Immediately $ 14.18


    View Diagram in Separate Window     Print Icon   Print Part List

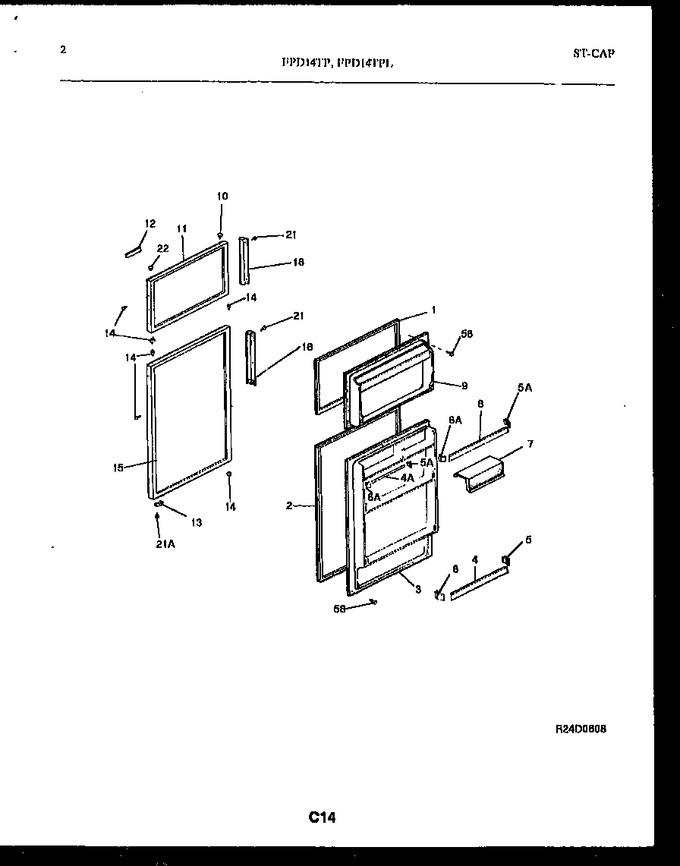

Diagram for FPD14TPLL0
