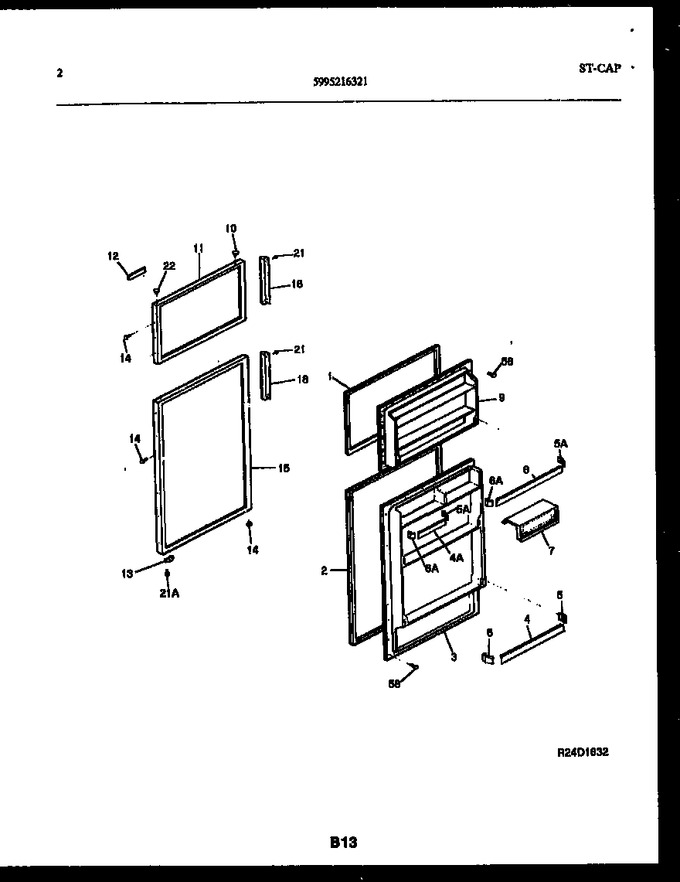

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001304 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303001317 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 3018418 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 3018420 | Rack-door, Refr, (2) |
|
- | |||||
| 5 | 5303205650 | Support-door Rack, Rh |
|
- | |||||
| 6 | 5303205648 | Support-door Rack, Lh |
|
- | |||||
| 7 | 5303018419 | Door-dairy |
|
- | |||||
| 8 | 3018417 | Rack-door, Frzr, (2) |
|
- | |||||
| 9 | 3018416 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916218 | Panel-frzr Door, White |
|
- | |||||
| 12 | 3201526 | Nameplate Assy |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916223 | Panel-refr Door, White |
|
- | |||||
| 18 | 5303272664 | Handle, Door, White |
|
- | |||||
| 21 | 5303272566 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit |
|
- | |||||
| 4A | 3018423 | Rack-door, Short |
|
- | |||||
| 5A | 5303323480 | Support-door Rack-rh (3) (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6A | 5303323481 | Support-door Rack-lh (3) (Replaces: 5303017381) |
|
Immediately | $ 14.18 |
