SELECT A DIAGRAM

01 - Blower, Float & Water Level Switch


02 - Cabinet & Faucet Coupler Assy.


03 - Control Panel


04 - Door


05 - Faucet Adapter Kit (inside Threaded)


06 - Faucet Adapter Kit (outside Threaded)


07 - Faucet Adapter Kit (unthreaded)


08 - Pump & Motor


09 - Rinse Aid & Soap Dispenser


10 - Track & Rack Assembly


11 - Tub


12 - Wiring Information

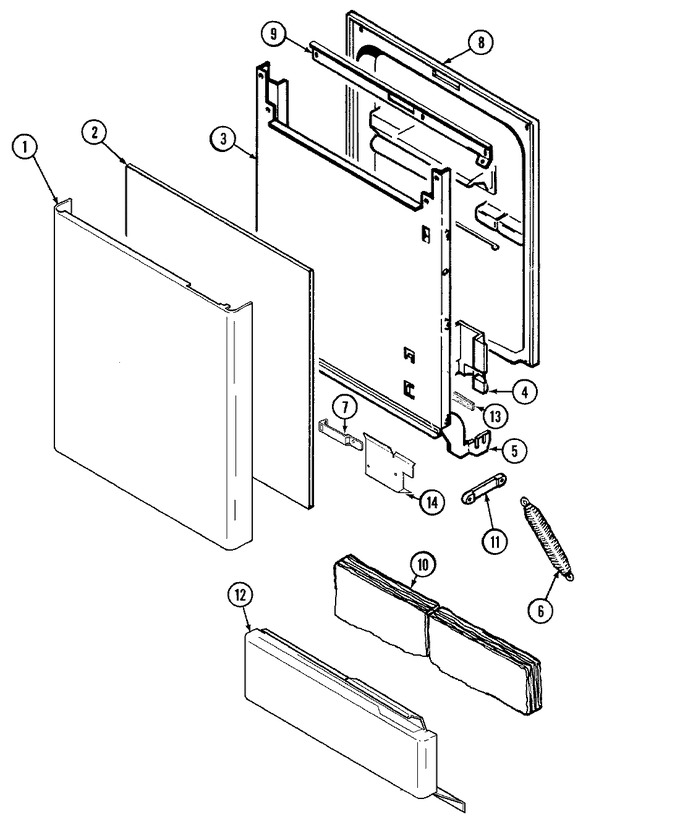

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001446		Screw, Decorator Panel (blk)	10	Appelez-nous	-
1	DAX2000AXE		Panel Accessory Kit (wht)	10	Appelez-nous	-
1	99001417		Panel, Decorator (blk)	10			$ 104.34
1	DAX2000AXM		Panel Accessory Kit (alm)	10	Appelez-nous	-
2	99001415		Filler, Front Panel	10	Appelez-nous	-
3	99001419		Door, Outer	10	Appelez-nous	-
3	99001688		Ground Wire, Reinforcement	30	Appelez-nous	-
4	Y912666		Retainer, Wire	10	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
5	99001075		Screw	10			$ 5.81
5	903070		Hinge (lt)	10	Appelez-nous	-
5	903071		Hinge (rt)	10	Appelez-nous	-
6	WP912652		Spring, Door   (Replaces: 912652)	10		Immediately	$ 9.00
7	99001444		Strap, Harness	10	Appelez-nous	-
7	WP6-912366		Screw   (Replaces: 912366)	10			$ 7.29
8	99001067		Door, Inner (w/damper)	10	Appelez-nous	-
8	Y912620		Screw	10			$ 5.48
8	99001212		Back, Vent	10	Appelez-nous	-
8	99001104		Seal, Vent	10	Appelez-nous	-
9	Y912668		Bar, Reinforcement	10	Appelez-nous	-
10	Y912836		Insulation, Access Panel	10	Appelez-nous	-
11	WP912653		Link, Door Spring   (Replaces: 912653)	10		Immediately	$ 7.45
12	WP6-912366		Screw   (Replaces: 912366)	10			$ 7.29
12	99001412		Panel, Access (blk)	10	Appelez-nous	-
13	903233		Foam Strip, Insulation	10	Appelez-nous	-
14	WP6-912366		Screw   (Replaces: 912366)	10			$ 7.29
14	99001414		Shield, Tub	10	Appelez-nous	-
14	WPW10339879		Strap, Cable   (Replaces: 912266)	10			$ 7.11

    View Diagram in Separate Window       Print Part List
