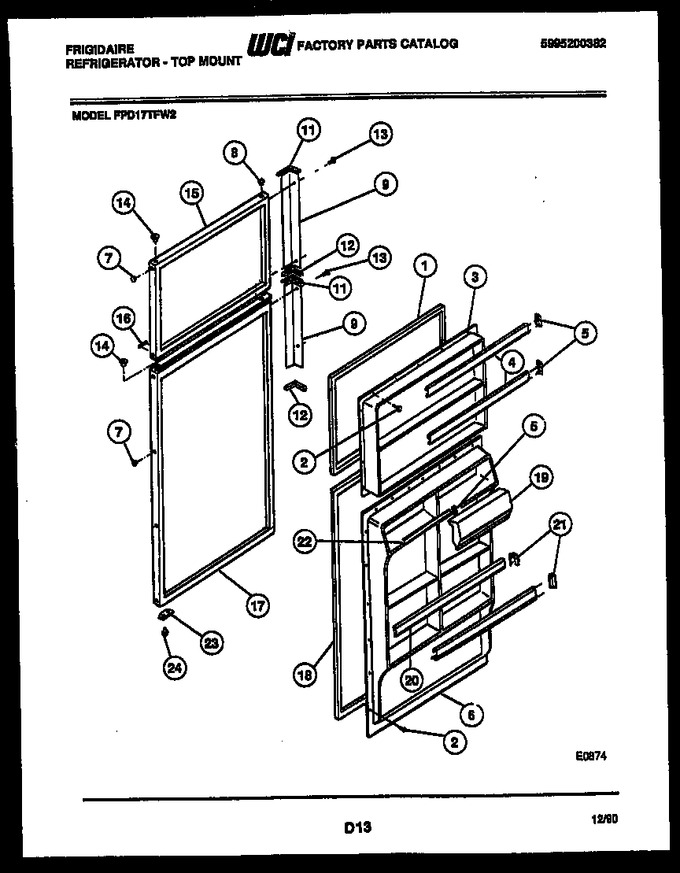

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001304 | Gasket-frzr Door |
|
- | |||||
| 2 | 08002748 | Screw |
|
- | |||||
| 3 | 3018865 | Inner Panel-frzr |
|
- | |||||
| 4 | 5303018866 | Rack-frzr Door (2) |
|
- | |||||
| 5 | 5303323481 | Support Rh (3) (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 6 | 3200478 | Inner Panel-refr |
|
- | |||||
| 7 | 5308000179 | Plug-avoc |
|
- | |||||
| 8 | 5308000175 | Plug-avoc |
|
- | |||||
| 9 | 5303017190 | Handle Assy W/ Cap & Trim (2) |
|
- | |||||
| 11 | 5308010239 | End Cap, Top (2) |
|
- | |||||
| 12 | 5308010238 | End Cap-bottom (2) |
|
- | |||||
| 13 | 5308013645 | Screw, Handle Mtg (4) |
|
- | |||||
| 14 | 5308012007 | Hinge Bearing (8) |
|
- | |||||
| 15 | 08012836 | Freezer Door-avoc |
|
- | |||||
| 16 | 3201526 | Nameplate |
|
- | |||||
| 17 | 08017601 | Refr Door-avoc |
|
- | |||||
| 18 | 5303017373 | Gasket-refr Door |
|
- | |||||
| 19 | 3200582 | Dairy Door |
|
- | |||||
| 20 | 3203927 | Rack-full Length (2) |
|
- | |||||
| 21 | 5303325990 | Support, Rh (2) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 22 | 3018423 | Rack-top |
|
- | |||||
| 23 | 5308000255 | Door Stop, Freezer (1) |
|
$ 42.20 | |||||
| 24 | 5308011745 | Screw |
|
$ 10.38 | |||||
| *40016 | 5303007739 | Insulation-blk |
|
- | |||||
| 21A | 5303203263 | Support-lh (2) (non-illustrated) |
|
- | |||||
| 23A | 5303212491 | Door Stop-refrigerator (1) (non-illustrated) |
|
- | |||||
| 5A | 5303323480 | Support Lh (3) (non-illustrated) (Replaces: 5303017378) |
|
$ 14.18 |
