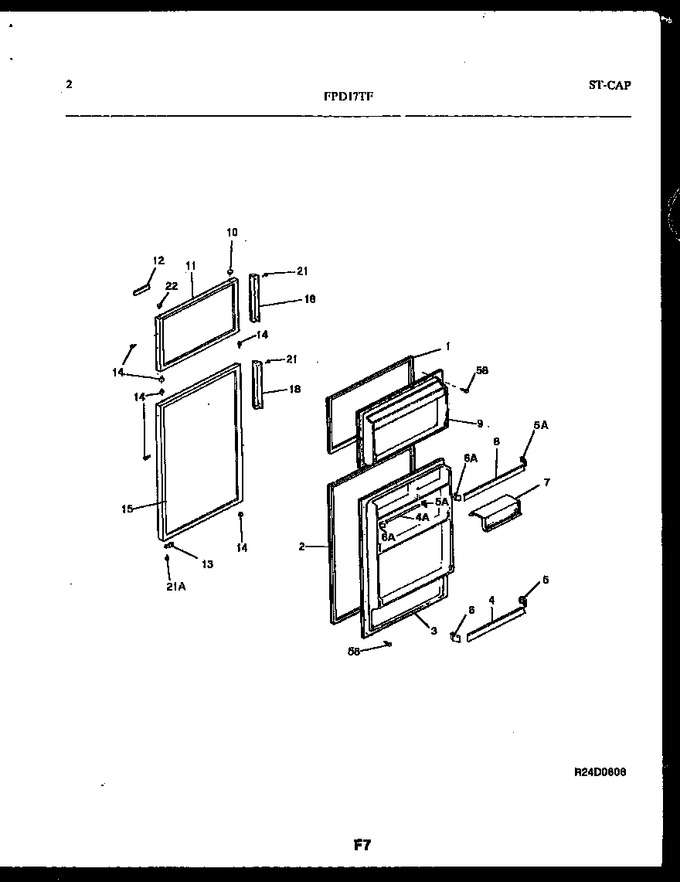

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001304		Gasket-frzr Door, Magnetic		Appelez-nous	-
2	5303017373		Gasket-refr Door, Magnetic		Appelez-nous	-
3	3200478		Panel-inner Door, Refr		Appelez-nous	-
4	3203927		Rack-door (2)		Appelez-nous	-
5	5303325990		Support-door Rack, Rh, (2)   (Replaces: 5303203262)			Immediately	$ 17.01
6	5303203263		Support-door Rack, Lh, (2)		Appelez-nous	-
7	3200582		Door-dairy		Appelez-nous	-
8	5303018866		Rack-door (2)		Appelez-nous	-
9	3018865		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000176		Button Plug, Wheat, Hinge Brg Hole		Appelez-nous	-
11	08009841		Panel-frzr Door, Wheat		Appelez-nous	-
12	3201526		Nameplate Assy		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5308000180		Button Plug, Wheat, Handle/dr Stop		Appelez-nous	-
15	5308009845		Panel-refr Door, Wheat		Appelez-nous	-
18	5303017190		Handle-door, Frzr		Appelez-nous	-
21	5308013645		Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*48801	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
13A	5308000255		Door Stop, Frzr (non Illustrated)				$ 42.20
21A	5308011745		Screw				$ 10.38
4A	3018423		Rack-door, Upper-refrig		Appelez-nous	-
5A	5303323480		Support-door Rack-rh (3)   (Replaces: 5303017378)				$ 14.18
6A	5303323481		Support-door Rack-lh (3)   (Replaces: 5303017381)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
