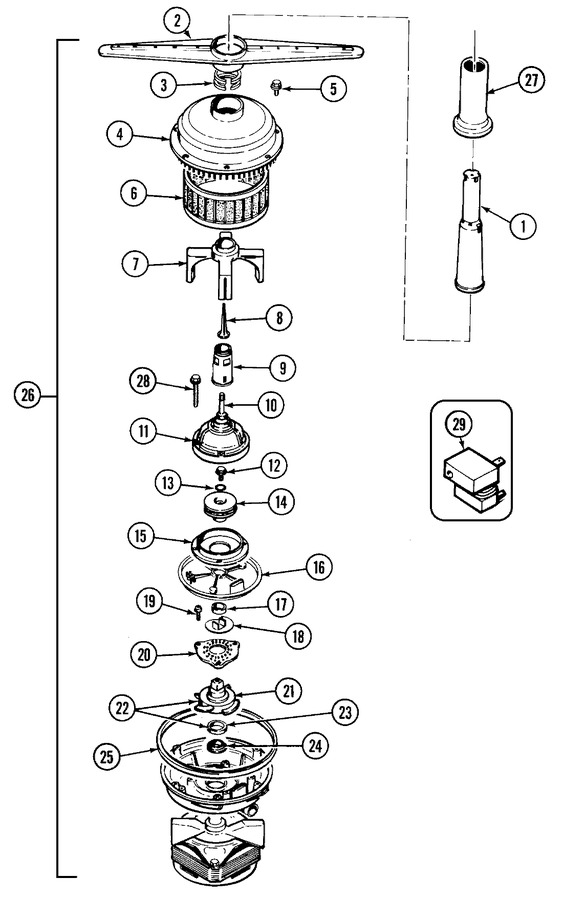

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	912646		Nozzel, Jump Up	A0			$ 18.92
2	903473		Spray Arm W/sheilds (lower)	A0	Appelez-nous	-
3	912313		Ring, Seal	A0			$ 33.76
4	912536		Strainer	A0	Appelez-nous	-
5	912622		Screw	A0	Appelez-nous	-
6	912328		Filter	A0	Appelez-nous	-
7	903081		Rinse Arm Assy	A0	Appelez-nous	-
8	912316		Nut	A0	Appelez-nous	-
9	Y912658		Support, Wash Arm	A0	Appelez-nous	-
10	912314		Wash Arm Support Shaft	A0	Appelez-nous	-
11	912321		Discharge Housing (upr)	A0	Appelez-nous	-
12	910654		Screw, Impeller	A0			$ 6.05
13	910934		Seal, O-ring	A0			$ 5.83
14	WP902461		Impeller Assembly   (Replaces: 902461)	A0			$ 56.39
15	912323		Plate, Suction	A0	Appelez-nous	-
16	912657		Support, Filter	A0	Appelez-nous	-
17	912510		O-ring	A0			$ 5.75
18	912310		Disc, Cutter	A0			$ 5.22
19	61002031		Screw   (Replaces: 99001081)	A0			$ 41.36
20	912309		Plate, Chopper	A0	Appelez-nous	-
21	912317		Drain Impeller	A0	Appelez-nous	-
22	WP902875		Drain Impeller Assy   (Replaces: 902875)	A0			$ 3.71
23	902883		Seal Seat Assy	A0	Appelez-nous	-
24	902882		Seal, Pump	A0			$ 28.18
25	912529		Gasket, Pump	A0			$ 35.78
26	WPW10339879		Strap, Cable   (Replaces: 912266)	B6			$ 7.11
26	903451		Power Module	A0	Appelez-nous	-
26	99001068		Motor/pump Housing Assy	A7	Appelez-nous	-
27	912518		Nozzle, Lower	A0			$ 7.90
28	912383		Screw	A0	Appelez-nous	-
29	902460		Relay,motor	A0	Appelez-nous	-
