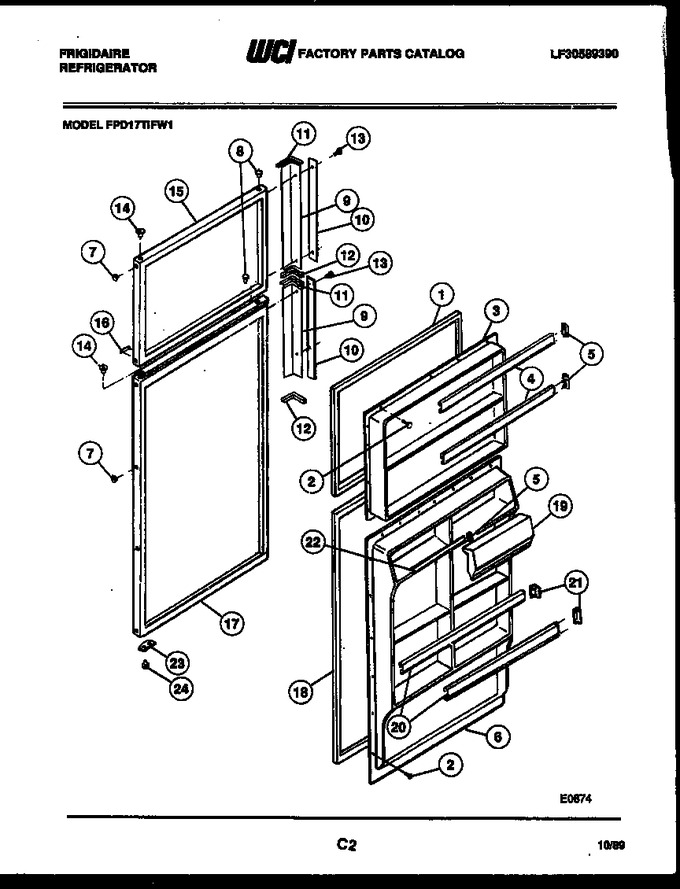

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker Parts
07 - Ice Maker Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001304 | Gasket-frzr Door |
|
- | |||||
| 2 | 08002748 | Screw |
|
- | |||||
| 3 | 3018865 | Inner Panel-frzr |
|
- | |||||
| 4 | 3018866 | Rack-frzr Door (2) |
|
- | |||||
| 5 | 3017381 | Support Rs (3) |
|
- | |||||
| 6 | 3200478 | Inner Panel-refr |
|
- | |||||
| 7 | 08000090 | Button-plug, White |
|
- | |||||
| 8 | 08000134 | Button-plug, White |
|
- | |||||
| 9 | 3017190 | Handle Assy W/ Cap & Trim (2) |
|
- | |||||
| 10 | 08010232 | Trim-handle (2) |
|
- | |||||
| 11 | 08010239 | End Cap-top (2) |
|
- | |||||
| 12 | 08010238 | End Cap-bottom (2) |
|
- | |||||
| 13 | 08013645 | Screw-handle Mtg (4) |
|
- | |||||
| 14 | 08012007 | Bearing-hinge |
|
- | |||||
| 15 | 08009840 | Freezer Door-white |
|
- | |||||
| 16 | 3018385 | Nameplate |
|
- | |||||
| 17 | 08009844 | Refr Door-white |
|
- | |||||
| 18 | 3017373 | Gasket-refr Door |
|
- | |||||
| 19 | 3200582 | Dairy Door |
|
- | |||||
| 20 | 3018420 | Rack-full Length (2) |
|
- | |||||
| 21 | 3200586 | Support Rs (2) |
|
- | |||||
| 22 | 3018423 | Rack-top |
|
- | |||||
| 23 | 08000255 | Door Stop (2) |
|
- | |||||
| 24 | 08011745 | Screw (2) |
|
- | |||||
| 21A | 3200587 | Support Ls (2) (non-illustrated) |
|
- | |||||
| 5A | 3017378 | Support Ls (3) (non-illustrated) |
|
- |
