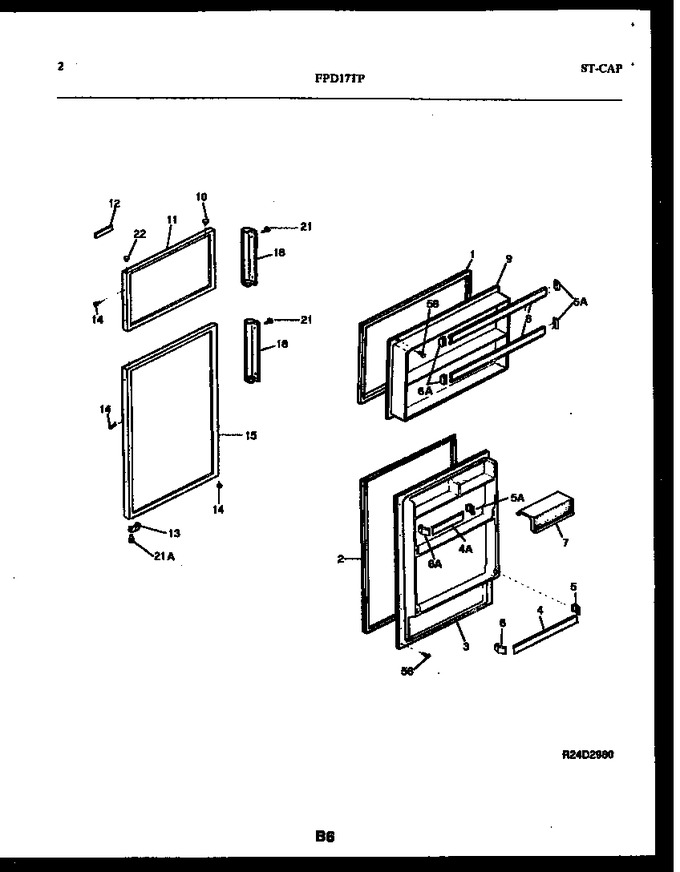

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001304 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303017373 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 3200478 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 3203927 | Rack-door (2) |
|
- | |||||
| 5 | 5303205650 | Support-door Rack, Rh |
|
- | |||||
| 6 | 5303205648 | Support-door Rack, Lh |
|
- | |||||
| 7 | 3200582 | Door-dairy |
|
- | |||||
| 8 | 5303018866 | Rack-door (2) |
|
- | |||||
| 9 | 3018865 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 3916108 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 3201526 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 3916113 | Panel-refr Door, Almond |
|
- | |||||
| 18 | 5303272563 | Handle, Door, Almond |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 4A | 3018423 | Rack-door, Short, Narrow |
|
- | |||||
| 5A | 5303323480 | Support, Door Rack, Rh (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6A | 5303323481 | Support, Door Rack, Lh (Replaces: 5303017381) |
|
Immediately | $ 14.18 |
