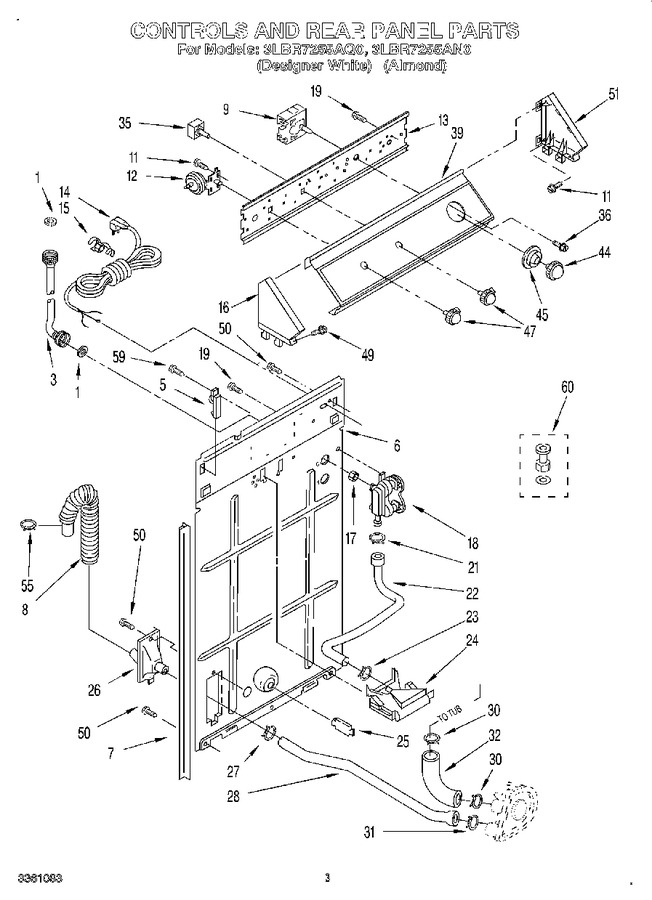

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
3	WP89503		Hose, Water Inlet (2)   (Replaces: 3354858)			Immediately	$ 21.68
5	387402		Hinge, Console (2)				$ 5.84
6	3361167		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285666		Hose, Drain (10 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285664		Hose, Drain (5 1/2 Ft.)   (Replaces: 661575)			Immediately	$ 33.20
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 54.81
9	3361002		Timer, Control (50 Hz.) (motor Not A Service Part)		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	WP3356465		Switch, Water Level   (Replaces: 3356465)				$ 141.19
13	3358895		Bracket, Control		Appelez-nous	-
14	3361035		Cord, Power		Appelez-nous	-
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
16	3358531		Cap, End (l.h.) (for Designer White Model)		Appelez-nous	-
16	3358532		Cap, End (l.h.) (for Almond Model)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285874		Valve, Water Mixing   (Replaces: 3360393)				$ 183.31
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
21	WP596669		(alt.)   (Replaces: 353367)			Immediately	$ 7.56
21	WP596669		(alt.)   (Replaces: 272846)			Immediately	$ 7.56
21	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 67.75
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3359818)				$ 76.37
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 7.55
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
35	661536		Switch, Water Temperature		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.13
39	3360381		Panel, Console (for Almond Model)		Appelez-nous	-
39	3360380		Panel, Console (for Designer White Model)		Appelez-nous	-
44	WP3364293		Knob, Timer (for Almond Model)   (Replaces: 3358416)			Immediately	$ 53.51
44	WP3364293		Knob, Timer (for Designer White Model)   (Replaces: 3358417)			Immediately	$ 53.51
45	3358447		Dial, Timer (for Designer White Model)		Appelez-nous	-
45	280193		Dial, Timer (for Almond Model)   (Replaces: 3358446)				$ 51.36
47	WP3957796		Knob, Control (for Designer White Model)   (Replaces: 3358435)			Immediately	$ 49.35
47	WP8538957		Knob, Control (for Almond Model)   (Replaces: 3358431)				$ 50.17
49	WP388326		Screw, 8-18 (panel To Top)   (Replaces: 3353145)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3358517		Cap, End (r.h.) (for Almond Model)		Appelez-nous	-
51	3358516		Cap, End (r.h.) (for Designer White Model)		Appelez-nous	-
55	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
59	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
60	3357451		Hose Adapter Assembly		Appelez-nous	-
