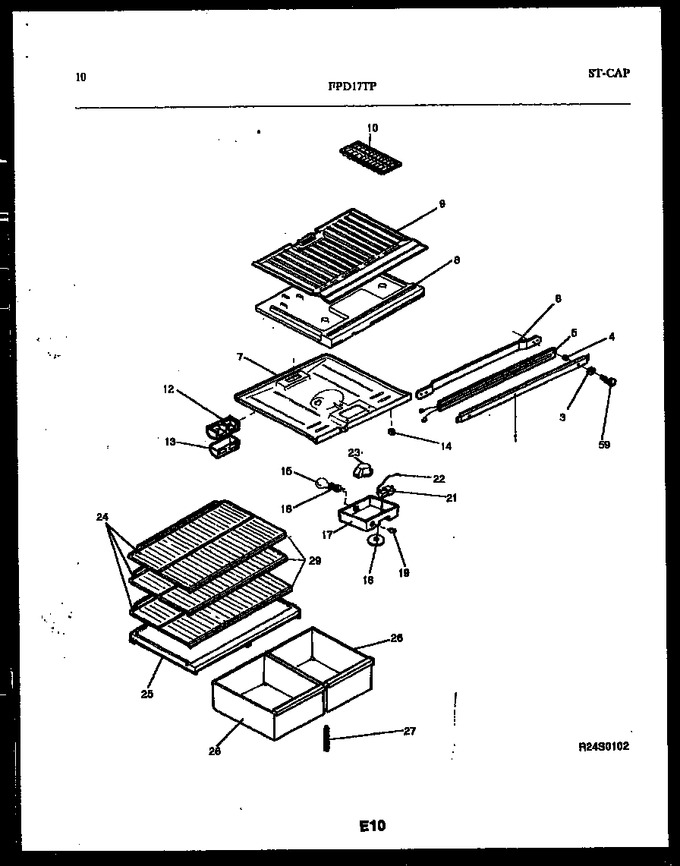

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3916132		Mullion, Wheat		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer, Mullion Mtg, (2)		Appelez-nous	-
5	5308017408		Heater-mullion		Appelez-nous	-
6	5308003604		Strap, Mullion Mtg		Appelez-nous	-
7	3018881		Top Panel-refr		Appelez-nous	-
8	5303018899		Divider, Styrofoam		Appelez-nous	-
9	5303001537		Bottom Panel-freezer		Appelez-nous	-
10	01121808		Ice Tray, Plastic		Appelez-nous	-
12	5308014667		Deflector, Air		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	3018895		Box, Control		Appelez-nous	-
18	3018893		Knob, Temp Control		Appelez-nous	-
19	5303018896		Switch, Energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Contrl Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
24	3200651		Shelf-full, Sliding, Refr, (3)		Appelez-nous	-
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
12B	5303200590		Extension, Air Deflector, With Insulation (non-illustrated)		Appelez-nous	-
17A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001380		Screw		Appelez-nous	-
8A	3018900		Wiring Harness, Control/divider (non-illustrated)		Appelez-nous	-
9A	3205266		Protector-edge (non-illustrated)				$ 80.09

    View Diagram in Separate Window       Print Part List
