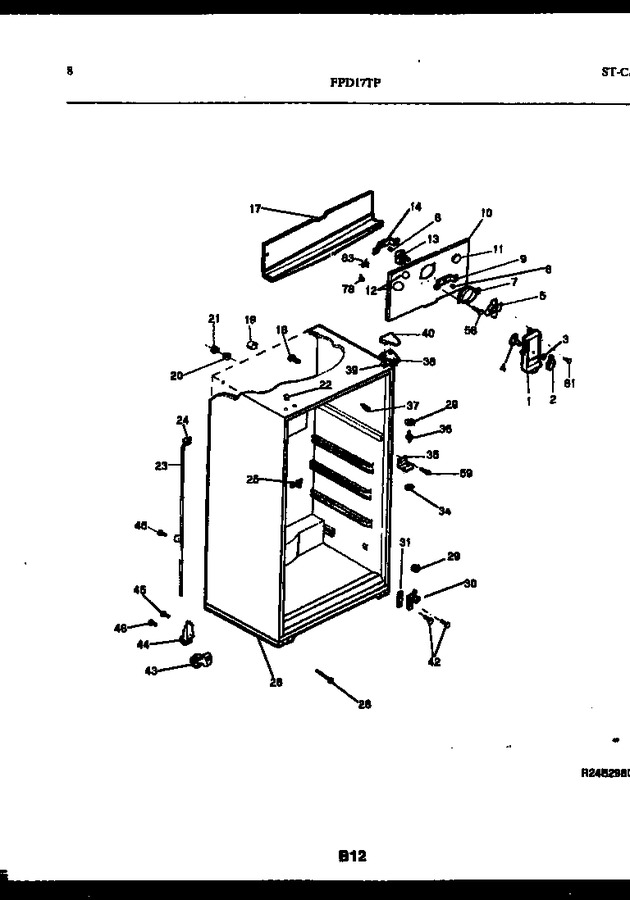

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	5303212489		Bracket-lower Hinge, W/ Hinge Pin		Appelez-nous	-
31	5303212488		Shim-lower Hinge				$ 5.25
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket-ctr Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202340		Trim-cabinet Corner, Almond		Appelez-nous	-
38	5308012843		Bracket-upper Hinge				$ 71.47
39	5303001037		Shim - Upper Hinge				$ 12.39
40	5308012933		Cover-upper Hinge, Almond		Appelez-nous	-
42	5303001320		Screw-hinge/gusset, Hx Wshr Hd Mach, 1/4-20 X 5/8		Appelez-nous	-
43	5303212490		Roller Assy, Front, (2)		Appelez-nous	-
44	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt, Roller Mtg, Hx Wshr Hd Mach, 1/4, 28 X 1/2, (2)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	5308012258		Screw				$ 2.25
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
*67851	5308016571		Plug-button, Liner				$ 4.79
30A	5303212596		Tapping Plate/gusset, Lh (non-illustrated)		Appelez-nous	-
30B	5303212597		Tapping Plate/gusset, Rh (non-illustrated)		Appelez-nous	-
38A	5308012296		Screw-hinge Mtg, Hex Head, 1/4-20 X 7/8 (non-illustrated)				$ 47.44
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
