SELECT A DIAGRAM

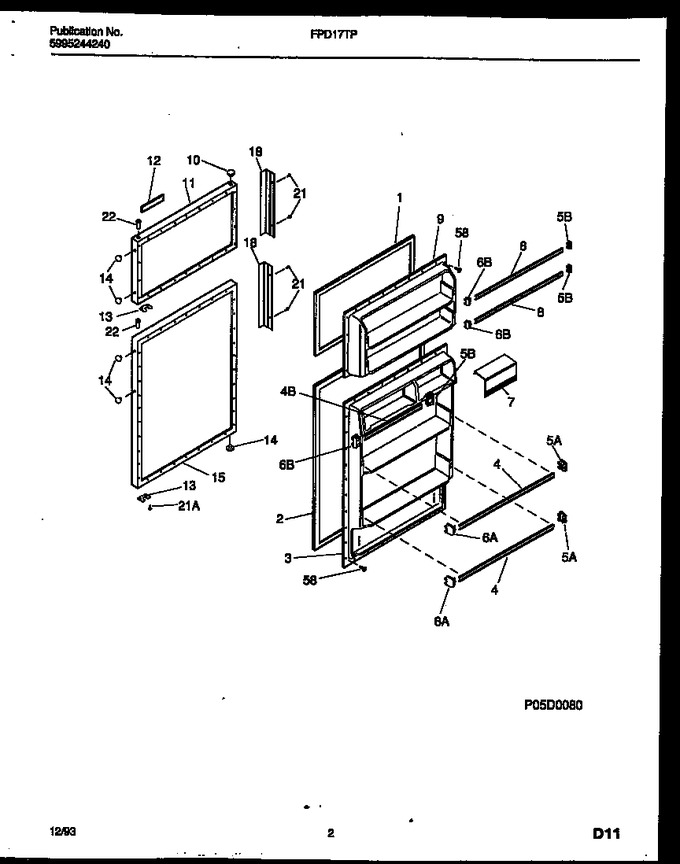

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001304		Gasket-frzr Door, Magnetic, Brown		Appelez-nous	-
2	5303017373		Gasket-refr Door, Magnetic, Brown		Appelez-nous	-
3	3200478		Panel-inner Door, Refr		Appelez-nous	-
4	3203927		Rack-door (2)		Appelez-nous	-
7	3200582		Door-dairy		Appelez-nous	-
8	5303018866		Rack-door (2)		Appelez-nous	-
9	3018865		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	3916108		Panel-frzr Door, Almond, W/ Insulation		Appelez-nous	-
12	3201526		Nameplate Assy		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	3916113		Panel-refr Door, Almond, W/ Insulation		Appelez-nous	-
18	5303272563		Handle-door, 16.75`` Long, Almond		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Almo		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*89974	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop-frzr				$ 42.20
21A	5308011745		Screw				$ 10.38
4B	3018423		Rack-door, Short, Narrow		Appelez-nous	-
5A	5303205650		Support-door Rack, Rh		Appelez-nous	-
5B	5303323480		Support, Door Rack, Rh   (Replaces: 5303017378)				$ 14.18
6A	5303205648		Support-door Rack, Lh		Appelez-nous	-
6B	5303323481		Support, Door Rack, Lh   (Replaces: 5303017381)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
