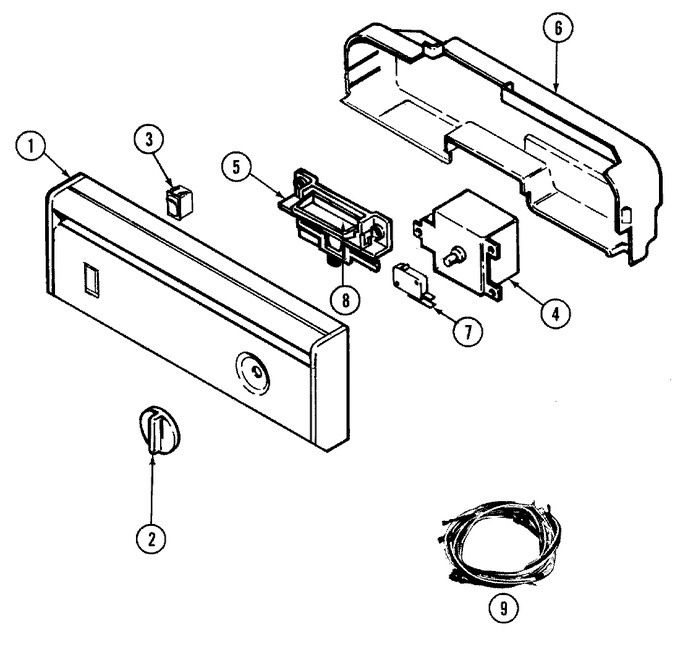

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001292		Panel, Control (blk)	A1	Appelez-nous	-
1	903822		Panel, Control (blk)	A0	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
2	903106		Knob, Timer (blk)	A0	Appelez-nous	-
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
3	903084		Switch, Rocker	A0	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
4	903083		Timer	A0	Appelez-nous	-
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
5	12001115		Kit, Latch Handle (blk)	A0			$ 62.49
6	Y912667		Barrier, Control Panel	A0	Appelez-nous	-
7	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
8	12001115		Kit, Latch Handle (blk)	A0			$ 62.49
9	99001038		Wire Harness, Main	A0	Appelez-nous	-
10	913228		Manual, Use & Care (frch)	A0	Appelez-nous	-
