SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports

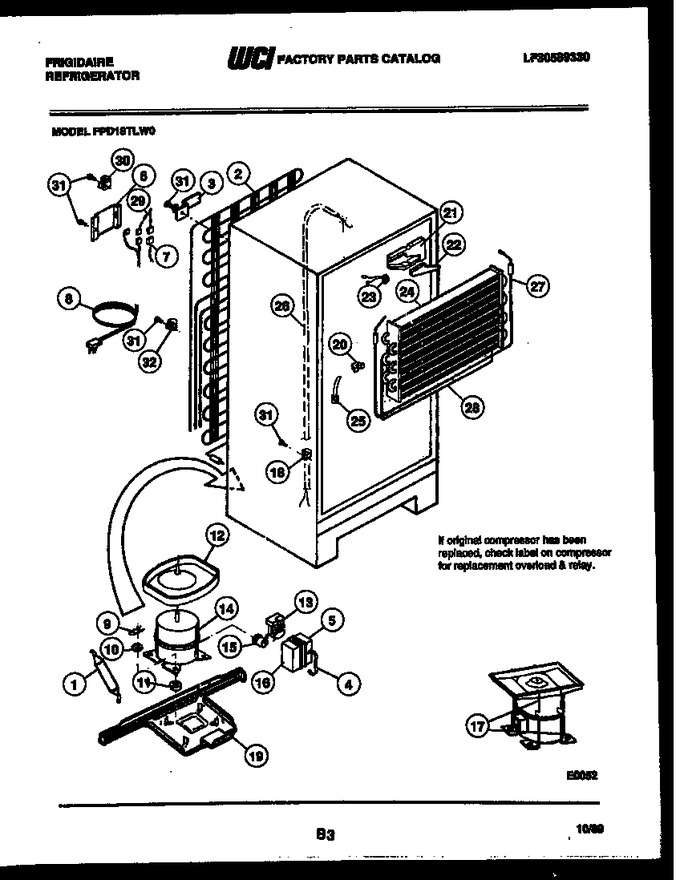

05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3007351		Drier		Appelez-nous	-
2	08008779		Condenser		Appelez-nous	-
3	08003600		Bracket-mtg (4)		Appelez-nous	-
4	3006412		Strap-term Cover		Appelez-nous	-
5	3006411		Cover-terminal		Appelez-nous	-
6	08013644		Cover-wiring		Appelez-nous	-
7	3206113		Wiring Harness-compressor		Appelez-nous	-
8	08000064		Service Cord		Appelez-nous	-
9	08003596		Clip (4)		Appelez-nous	-
10	08003597		Washer (4)		Appelez-nous	-
11	08008778		Grommet (4)		Appelez-nous	-
12	08012951		Defrost Pan		Appelez-nous	-
13	216594300		Relay   (Replaces: 3204486)				$ 28.92
14	3916411		Compressor W/ Elec		Appelez-nous	-
15	3204487		Overload		Appelez-nous	-
17	3916001		Pan Retainer Kit (svc Comp)		Appelez-nous	-
18	08008782		Clamp-tube		Appelez-nous	-
19	3206126		Plate-compr Mtg		Appelez-nous	-
20	08017227		Insulation Block Ls		Appelez-nous	-
21	08013648		Insulation Block Rs		Appelez-nous	-
22	08013646		Insulation Plug Rs		Appelez-nous	-
23	08000073		Thermostat		Appelez-nous	-
24	3206452		Evaporator		Appelez-nous	-
25	08000110		Strap-evap/heater (2)		Appelez-nous	-
26	08010274		Heat Exchanger		Appelez-nous	-
27	3206453		Heater-defrost				$ 268.46
28	08009569		Insulator		Appelez-nous	-
29	3018900		Wiring Harness, Divider		Appelez-nous	-
30	08000132		Clamp-cable		Appelez-nous	-
31	08016629		Screw-clamp Mtg		Appelez-nous	-
32	08002756		Clamp-cable (3)		Appelez-nous	-
*26894	3916557		Hot Tube Repair Kit				$ 360.78
12A	08017610		Sound Tape (non-illustrated)		Appelez-nous	-
12B	08003611		Lock Nut (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
