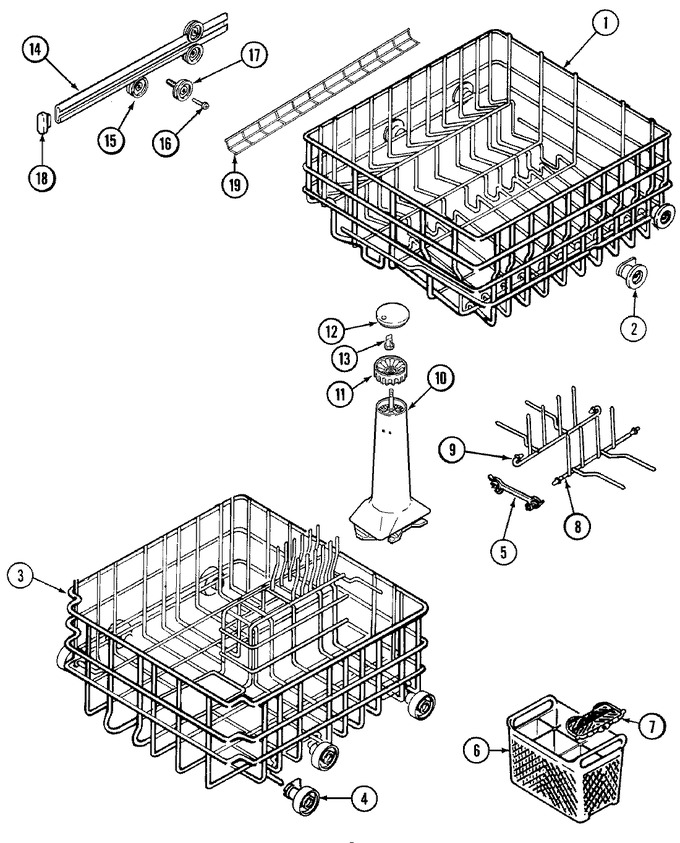

06 - Track & Rack Assembly (dwu7402aam)


07 - Tub (dwu7402aam)


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001507		Rack Assembly (upr)	10	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	10		Immediately	$ 9.65
3	99001509		Rack Assembly (lwr)	10	Appelez-nous	-
4	WP99002780		Wheel Assembly (lwr)   (Replaces: 903095)	10		Immediately	$ 9.90
5	WPY912709		Clip, Adjustable Peg   (Replaces: Y912709)	10		Immediately	$ 7.07
6	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 903446)	10		Immediately	$ 54.28
7	WP6-918873		Cover, Silverware Basket   (Replaces: 912639)	10		Immediately	$ 54.28
8	99001485		Tine, Bowl (frt)	10	Appelez-nous	-
9	WP99002138		Tine, Bowl (rear)   (Replaces: 99001486)	10			$ 61.64
10	99001533		Tower, Spray (w/shaft-gray)	10	Appelez-nous	-
11	99001442		Diverter, Spray (gray)	10			$ 5.84
12	99001443		Cap, Spray Diverter (gray)	10			$ 5.51
13	99001426		Nut, Discharge Housing	10			$ 5.84
14	Y912545		Track, Rack	10			$ 40.33
15	912548		Wheel, Tub	10	Appelez-nous	-
16	WP99002947		Shaft, Tub Wheel   (Replaces: 912549)	10		Immediately	$ 10.58
17	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	10			$ 6.90
18	WP99002135		Stop, Rack   (Replaces: 912546)	10			$ 7.92
19	99001508		Shelf, Rack (upr)	10	Appelez-nous	-
