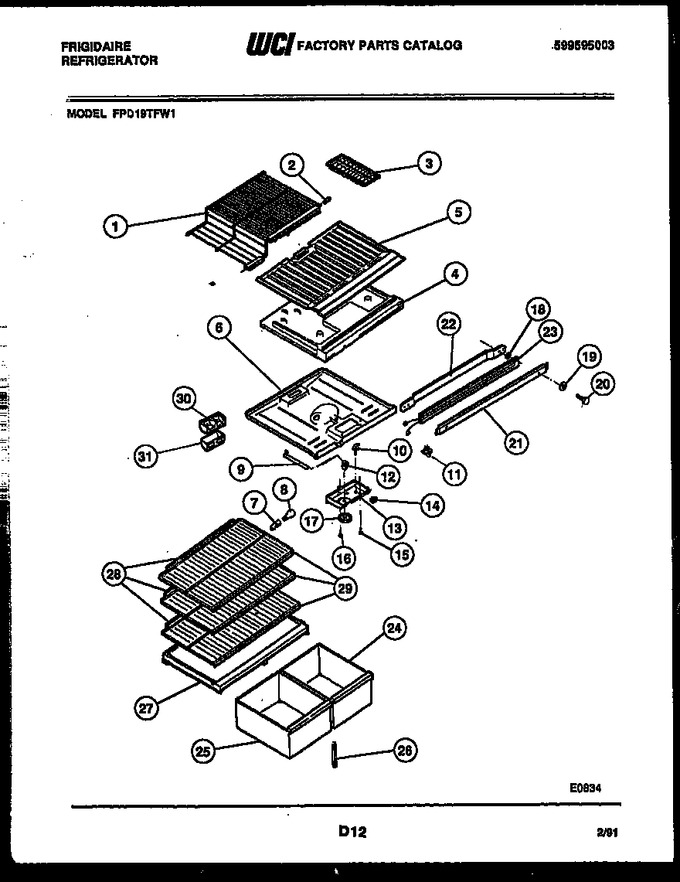

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08009860 | Shelf, Freezer |
|
- | |||||
| 2 | 3201150 | Cap Protector (2) |
|
$ 4.57 | |||||
| 3 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 4 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 5 | 5303211427 | Bottom - Freezer |
|
- | |||||
| 6 | 3018993 | Top - Refrigerator |
|
- | |||||
| 7 | 218906802 | Socket, Light (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 8 | 5303001179 | Bulb, Light |
|
- | |||||
| 9 | 3018891 | Housing - Control Cap Tube |
|
- | |||||
| 10 | 5303007400 | Timer |
|
- | |||||
| 11 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 12 | 5303018894 | Control, Cold |
|
- | |||||
| 13 | 3018895 | Box, Control |
|
- | |||||
| 14 | 5303018896 | Switch, Rocker |
|
- | |||||
| 15 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 16 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 17 | 3018893 | Knob, Cold Control |
|
- | |||||
| 18 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 19 | 5303206754 | Washer, Steel (2) |
|
- | |||||
| 20 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 21 | 5303200367 | Mullion - Avocado |
|
- | |||||
| 22 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 23 | 5303210351 | Heater-mullion |
|
- | |||||
| 24 | 3200468 | Pan-crisper Rh |
|
- | |||||
| 25 | 3200469 | Pan-crisper Lh |
|
- | |||||
| 26 | 5303206508 | Support-crisper Cover-adj |
|
- | |||||
| 27 | 3200470 | Cover-crisper |
|
- | |||||
| 28 | 3200471 | Shelf-sliding (3) |
|
- | |||||
| 29 | 08013639 | Trim-shelf (3) |
|
- | |||||
| 30 | 3204206 | Air Deflector |
|
- | |||||
| 31 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 13A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 1A | 5304509705 | Grommet-shelf Mtg-rh (2) (non-illustrated) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 1B | 5304500407 | Grommet-shelf Mtg-lh (2) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 4A | 3018900 | Wiring Harness - Divider (non-illustrated) |
|
- | |||||
| 4B | 3205266 | Edge Protector (2) (non-illustrated) |
|
$ 80.09 | |||||
| 6A | 5303001380 | Screw |
|
- |
