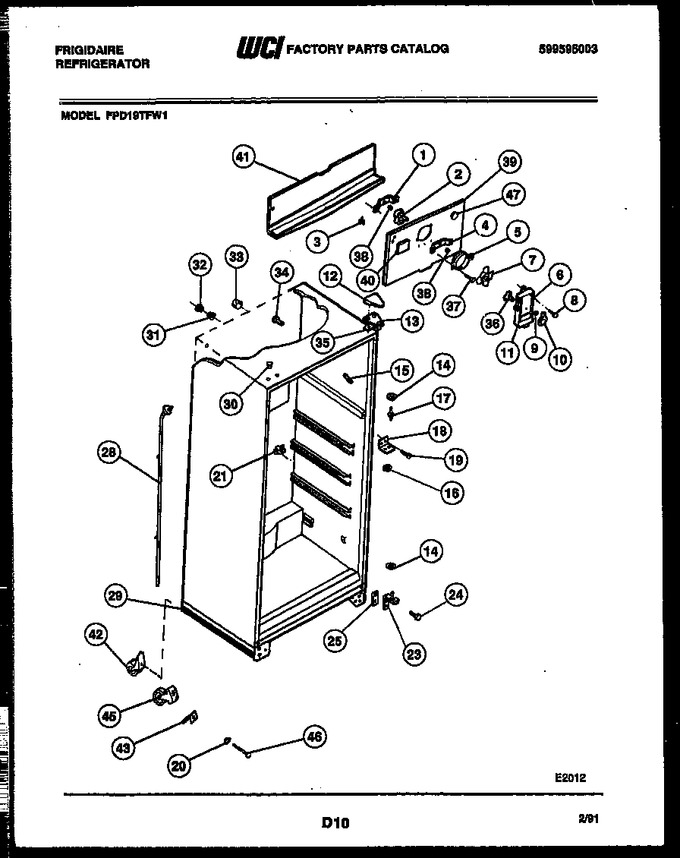

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303205119 | Bracket-motor Rear |
|
- | |||||
| 2 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 3 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 4 | 5303001226 | Bracket-motor Front |
|
- | |||||
| 5 | 5308000124 | Ring, Orifice |
|
$ 53.58 | |||||
| 6 | 08009822 | Label-fan Cover |
|
- | |||||
| 7 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 8 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 9 | 5303001028 | Push-nut |
|
- | |||||
| 10 | 5308009793 | Knob, Damper Control |
|
- | |||||
| 11 | 08009817 | Cover, Fan |
|
- | |||||
| 12 | 5303001666 | Cover - Hinge-coffee |
|
- | |||||
| 13 | 5308012843 | Bracket-top-hinge |
|
$ 71.47 | |||||
| 14 | 5308000007 | Washer, Nylon (2) |
|
- | |||||
| 15 | 5303202339 | Trim-corner-coffee |
|
- | |||||
| 16 | 5308000186 | Washer, Nylon |
|
Immediately | $ 6.02 | ||||
| 17 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 18 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 19 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 20 | 5308011326 | Washer-nylon (2) |
|
$ 9.87 | |||||
| 21 | 5308000056 | Spout-drain Tube |
|
$ 11.66 | |||||
| 23 | 5303212489 | Bracket, Bottom Hinge |
|
- | |||||
| 24 | 5303001320 | Screw-hinge/gusset Mounting (6) |
|
- | |||||
| 25 | 5303212488 | Shim-bottom Bracket |
|
$ 5.25 | |||||
| 28 | 5303210377 | Tube-drain, W/seal Ring |
|
$ 109.31 | |||||
| 29 | 5303212487 | Base-cabinet |
|
- | |||||
| 30 | 5303001679 | Plug-button-coffee |
|
- | |||||
| 31 | 5303001286 | Ferrule-inner |
|
- | |||||
| 32 | 5303001287 | Ferrule-outer |
|
- | |||||
| 33 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 34 | 5308000097 | Support, Coil Cover (2) |
|
- | |||||
| 35 | 5303001037 | Shim-top Bracket |
|
$ 12.39 | |||||
| 36 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 37 | 08002748 | Screw |
|
- | |||||
| 38 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 39 | 5308009771 | Cover, Coil |
|
- | |||||
| 40 | 5308013636 | Plug, Decorative |
|
- | |||||
| 41 | 5303001470 | Trough-drain |
|
- | |||||
| 42 | 5308009773 | Roller-rear (2) |
|
- | |||||
| 43 | 5308009790 | Spring-adj Roller (2) |
|
$ 4.30 | |||||
| 45 | 5303212490 | Roller-adj Front (2) |
|
- | |||||
| 46 | 5303212598 | Bolt-roller Adj (2) |
|
- | |||||
| 47 | 5303208309 | Plug, Short Test Hole |
|
$ 45.50 | |||||
| *41237 | 5308016571 | Plug - Liner (3) |
|
$ 4.79 | |||||
| 10A | 08009823 | Label, Knob (non-illustrated) |
|
- | |||||
| 13A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 13B | 5308012296 | Plate-tapping (2) (non-illustrated) |
|
$ 47.44 | |||||
| 21A | 5303001361 | Push Pin (2) (non-illustrated) |
|
- | |||||
| 23A | 5303212596 | Tapping Plate/gusset, Lh (non-illustrated) |
|
- | |||||
| 23B | 5303212597 | Tapping Plate/gusset, Rh (non-illustrated) |
|
- | |||||
| 28A | 5303207353 | Ring Seal (non-illustrated) |
|
$ 6.81 | |||||
| 39A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 39B | 5303209814 | Nut-8 (a) Type U (non-illustrated) |
|
- | |||||
| 3A | 5303210353 | Screw-mounting (non-illustrated) |
|
- | |||||
| 42A | 5308009762 | Bolt-roller Mtg (2) (non-illustrated) |
|
- | |||||
| 42B | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 |
