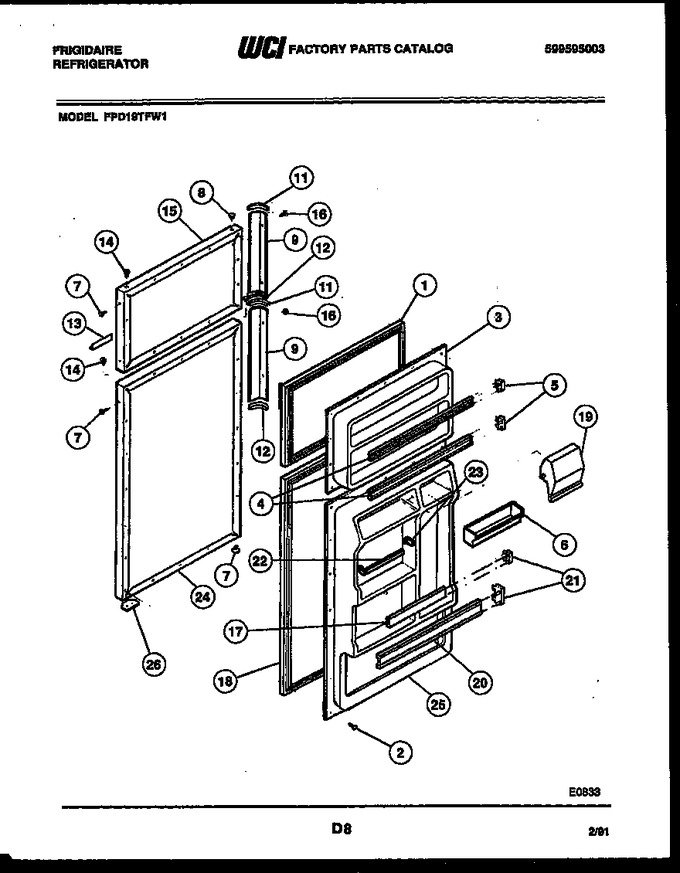

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017189		Gasket, Freezer		Appelez-nous	-
2	08002748		Screw		Appelez-nous	-
3	3018971		Panel-inner Freezer		Appelez-nous	-
4	3018972		Rack, Freezer (2)		Appelez-nous	-
5	5303323480		Support, Rh (2)   (Replaces: 5303017378)				$ 14.18
6	3200466		Bin, Utility		Appelez-nous	-
7	240494001		Button Plug-white   (Replaces: 5308000090)			Immediately	$ 18.20
8	5308000134		Button Plug-white				$ 5.62
9	5303017190		Handle-complete W/ Trim & End Caps (2)		Appelez-nous	-
11	5308010239		Cap, Top (2)		Appelez-nous	-
12	5308010238		Cap, Bottom (2)		Appelez-nous	-
13	3201526		Nameplate		Appelez-nous	-
14	5308012007		Bearing, Hinge (8)		Appelez-nous	-
15	5308009931		Panel, Freezer (white)		Appelez-nous	-
16	5308013645		Screw (4)		Appelez-nous	-
17	3019018		Rack-refr Door		Appelez-nous	-
18	5308017487		Gasket, Refrigerator		Appelez-nous	-
19	3200467		Door, Dairy		Appelez-nous	-
20	3018975		Rack-refr Door		Appelez-nous	-
21	5303325990		Support, Rh (2)   (Replaces: 5303203262)			Immediately	$ 17.01
22	3018423		Rack-refr Door		Appelez-nous	-
23	5303323480		Support, Rh   (Replaces: 5303017378)				$ 14.18
24	3916032		Panel-refr-white		Appelez-nous	-
25	3018976		Panel-inner Refr		Appelez-nous	-
26	5303212491		Door Stop, Refr		Appelez-nous	-
*41232	5308011745		Screw				$ 10.38
*41232	5308000255		Door Stop-freezer				$ 42.20
*41232	5303007739		Insulation, Bulk		Appelez-nous	-
21A	5303203263		Support-lh (2) (non-illustrated)		Appelez-nous	-
23A	5303323481		Support, Lh (non-illustrated)   (Replaces: 5303017381)			Immediately	$ 14.18
5A	5303323481		Support, Lh (2) (non-illustrated)   (Replaces: 5303017381)			Immediately	$ 14.18
