SELECT A DIAGRAM

01 - Blower


02 - Control Panel


03 - Door


04 - Pump & Motor


05 - Racks


06 - Rinse Aid & Soap Dispenser


07 - Tub

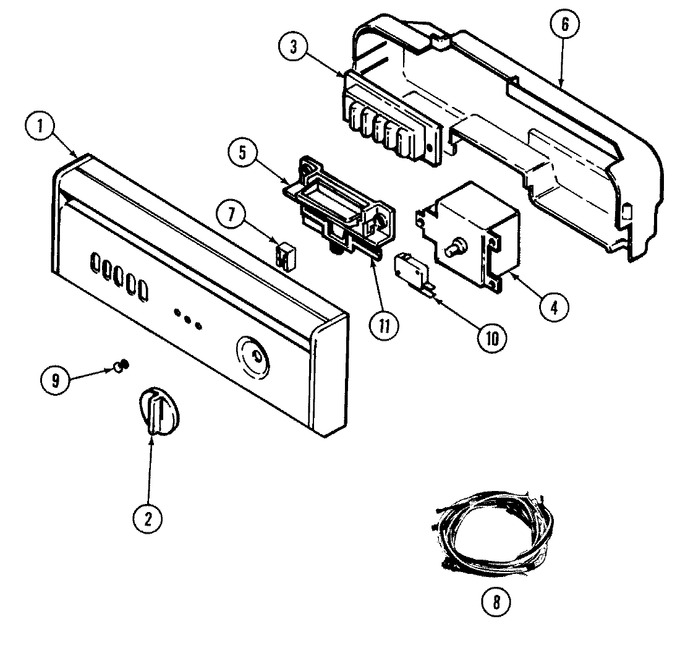

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903831		Panel, Control (blk)	A0	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
2	903106		Knob, Timer (blk)	A0	Appelez-nous	-
3	903076		Switch, Control (5 Button-blk)	A0	Appelez-nous	-
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
4	99001139		Timer	B0			$ 219.46
4	903114		Timer	A0	Appelez-nous	-
5	Y912664		Holder, Door Switch	A0			$ 38.66
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
6	Y912667		Barrier, Control Panel	A0	Appelez-nous	-
7	903115		Lock Light	A0			$ 5.70
8	903182		Wire Harness, Main	A0	Appelez-nous	-
8	99001026		Wire Harness, Main	A6	Appelez-nous	-
9	Y912696		Lens, Indicator Light	A0			$ 5.02
10	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
11	12001115		Kit, Latch Handle (blk)	A9			$ 62.49
11	Y912665		Handle, Latch (blk)	A0	Appelez-nous	-
