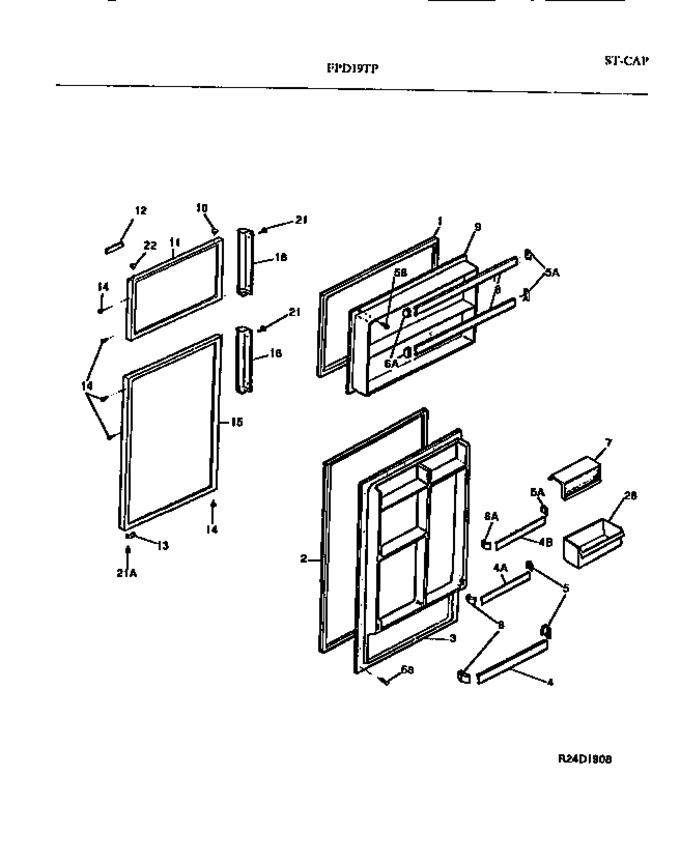

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017189		Gasket, Freezer Door, Magnetic		Appelez-nous	-
2	5308017487		Gasket, Refrigerator Door, Magnetic		Appelez-nous	-
3	3018976		Panel, Inner Door, Refrigerator		Appelez-nous	-
4	3018975		Rack, Door, Wide, Full Width		Appelez-nous	-
5	5303325990		Support, Door Rack, Right Hand   (Replaces: 5303203262)			Immediately	$ 17.01
6	5303203263		Support, Door Rack, Left Hand		Appelez-nous	-
7	3200467		Door, Dairy		Appelez-nous	-
8	3018972		Rack, Door, Narrow, Full Width		Appelez-nous	-
9	3018971		Panel, Inner Door, Freezer		Appelez-nous	-
10	5308000134		Plug, Button, Hinge Bearing Hole, White				$ 5.62
11	5303916052		Panel, Freezer Door, White		Appelez-nous	-
12	3201526		Nameplate Assembly		Appelez-nous	-
13	5303212491		Door Stop, Refrigerator		Appelez-nous	-
14	240494001		Plug, Button, Handle/door Stop, White   (Replaces: 5308000090)			Immediately	$ 18.20
15	3916057		Panel, Refrigerator Door, White		Appelez-nous	-
18	5303272664		Handle, Door, White		Appelez-nous	-
21	5303272566		Screw, Handle Mounting, Special Cr Oval Head, 10-24(d)		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
28	3200466		Bin, Utility		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*03440	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
13A	5308000255		Door Stop, Freezer (not Illustrated)				$ 42.20
21A	5308011745		Screw				$ 10.38
4A	3019018		Rack, Door, Wide, Short		Appelez-nous	-
4B	3018423		Rack, Door, Narrow, Short		Appelez-nous	-
5A	5303323480		Support, Door Rack, Right Hand   (Replaces: 5303017378)				$ 14.18
6A	5303323481		Support, Door Rack, Left Hand   (Replaces: 5303017381)			Immediately	$ 14.18
