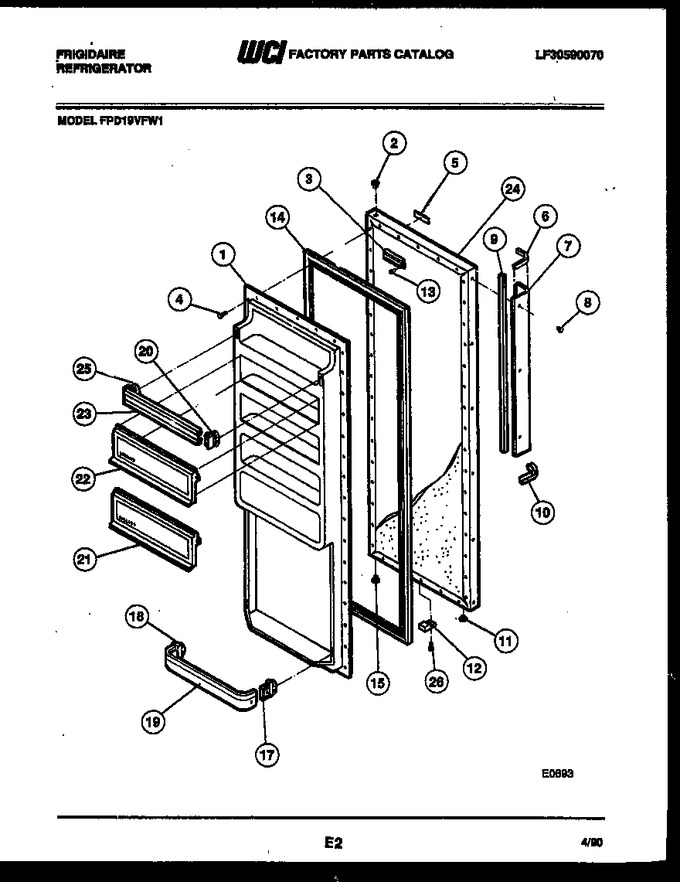

02 - Refrigerator Door Parts


03 - Freezer Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018639		Panel-inner		Appelez-nous	-
2	5303001022		Bearing-hinge Upper		Appelez-nous	-
3	5303200272		Closer-door		Appelez-nous	-
4	218843801		Screw   (Replaces: 5303001001)				$ 14.41
5	3201526		Nameplate		Appelez-nous	-
6	5308010239		End Cap-upper		Appelez-nous	-
7	3018744		Handle-door-w/trim & End Caps		Appelez-nous	-
8	5308013645		Screw (4)		Appelez-nous	-
9	5308010229		Trim-handle		Appelez-nous	-
10	5308010238		End Cap-lower		Appelez-nous	-
11	5315230801		Button-plug		Appelez-nous	-
12	5308000790		Bumper, Light Switch				$ 3.86
13	5306588927		Screw-closer Mtg		Appelez-nous	-
14	5303201013		Gasket-magnetic		Appelez-nous	-
15	5308012007		Bearing-hinge		Appelez-nous	-
17	5303206719		Support-door Rack-rh (2)		Appelez-nous	-
18	5303206605		Support-door Rack-lh (2)		Appelez-nous	-
19	5303206715		Rack-door (2)		Appelez-nous	-
20	5303323480		Support-door Rack-rh (3)   (Replaces: 5303017378)				$ 14.18
21	3018776		Door-compartment Lower		Appelez-nous	-
22	3018777		Door-compartment Upper		Appelez-nous	-
23	3018638		Rack-door (3)		Appelez-nous	-
24	3916065		Panel-refrigerator-coffee		Appelez-nous	-
25	5303323481		Support-door Rack-lh (3)   (Replaces: 5303017381)			Immediately	$ 14.18
26	218843801		Screw   (Replaces: 5303001001)				$ 14.41
*31124	5303007739		Insulation, Bulk		Appelez-nous	-
4A	5303209639		Screw-8-15(a) X 5/8 (22)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
