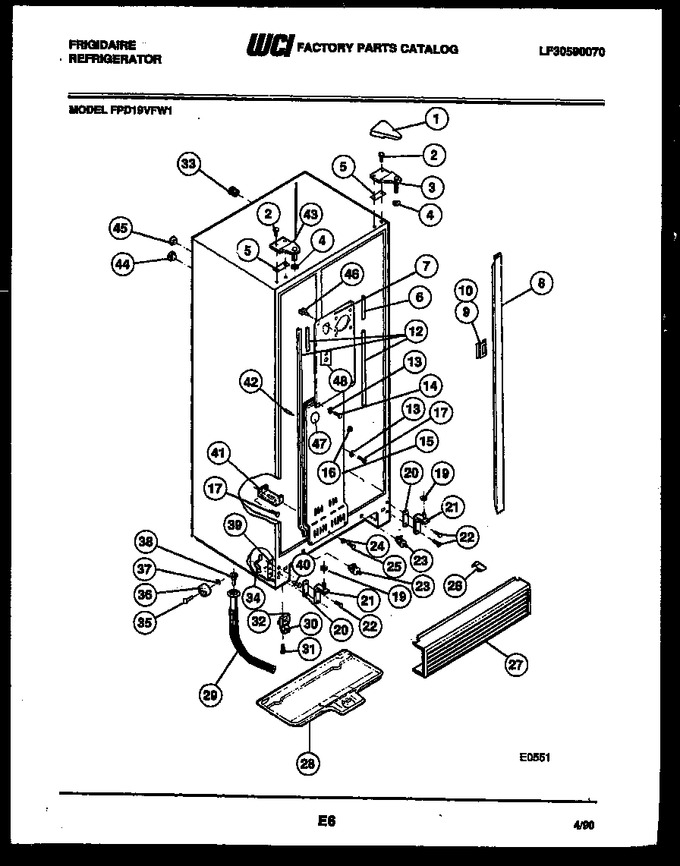

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001665		Cover-top Hinge-wheat (2)		Appelez-nous	-
2	241710601		Screw   (Replaces: 5303001479)				$ 13.46
3	5308012934		Hinge-upper-rh		Appelez-nous	-
4	5308000186		Washer-nylon (2)			Immediately	$ 6.02
5	5303001037		Shim-upper Hinge (2)				$ 12.39
6	5303001219		Gasket-coil Cover (2)		Appelez-nous	-
7	5306588927		Screw-closer Mtg		Appelez-nous	-
7	08000825		Coil Cover-upper		Appelez-nous	-
8	3916446		Mullion, Wheat		Appelez-nous	-
9	5300169100		Clip-mullion (3)		Appelez-nous	-
10	5303001281		Clip-mullion (3)		Appelez-nous	-
10	5303200733		Gasket-magnetic		Appelez-nous	-
12	5303001233		Gasket Kit		Appelez-nous	-
13	5303001216		Washer-nylon (8)		Appelez-nous	-
14	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
15	5308017223		Cover-lower Coil		Appelez-nous	-
16	5303001231		Clip-grounding		Appelez-nous	-
17	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
19	5303001038		Washer-nylon (2)				$ 13.34
20	5303001272		Shim-lower Hinge (2)		Appelez-nous	-
21	5303001271		Hinge-lower (2)				$ 102.38
22	5303001041		Screw (4)		Appelez-nous	-
23	5303208475		Switch-light (2)		Appelez-nous	-
24	5308009617		Washer-ext Lock		Appelez-nous	-
25	5303001230		Screw		Appelez-nous	-
26	5308000091		Clip-grille (2)				$ 14.57
27	5303016726		Grille-lower Front		Appelez-nous	-
28	5308000086		Pan-defrost		Appelez-nous	-
29	5303209723		Drain Tube		Appelez-nous	-
30	5308000118		Roller Assy-front (2)		Appelez-nous	-
31	5308017044		Screw-roller Mtg (2)				$ 6.34
32	5308009568		Screw-roller Adj (2)		Appelez-nous	-
33	5303001198		Tube-rubber (4)		Appelez-nous	-
34	5300077210		Nut-stud Speed (2)		Appelez-nous	-
35	5308000266		Pin (2)		Appelez-nous	-
36	5308000265		Roller (2)		Appelez-nous	-
37	5303001028		Nut-push (2)		Appelez-nous	-
38	5308000853		Conductor-heat		Appelez-nous	-
39	5303001273		Nut-special Twin (4)		Appelez-nous	-
40	5308000013		Pin-shoulder (2)		Appelez-nous	-
41	5308000738		Bracket, Cover Mounting		Appelez-nous	-
42	5303001250		Support-coil Cover (5)		Appelez-nous	-
43	3001062		Hinge-upper-lh		Appelez-nous	-
44	5303001286		Ferrule-inner (2)		Appelez-nous	-
45	5303001287		Ferrule-outer (2)		Appelez-nous	-
46	5308000097		Support, Coil Cover (2)		Appelez-nous	-
47	5303208309		Plug, Short Test Hole				$ 45.50
48	08012270		Decorative Plug		Appelez-nous	-
*31128	5308016571		Plug, Freezer Liner (3)				$ 4.79
*31128	5308012296		Tapping-plate (2)				$ 47.44
23A	08009775		Clip-light Switch Cable (2) (non-illustrated)		Appelez-nous	-
7A	5303209814		Nut U-type (2)		Appelez-nous	-
