01 - Cover

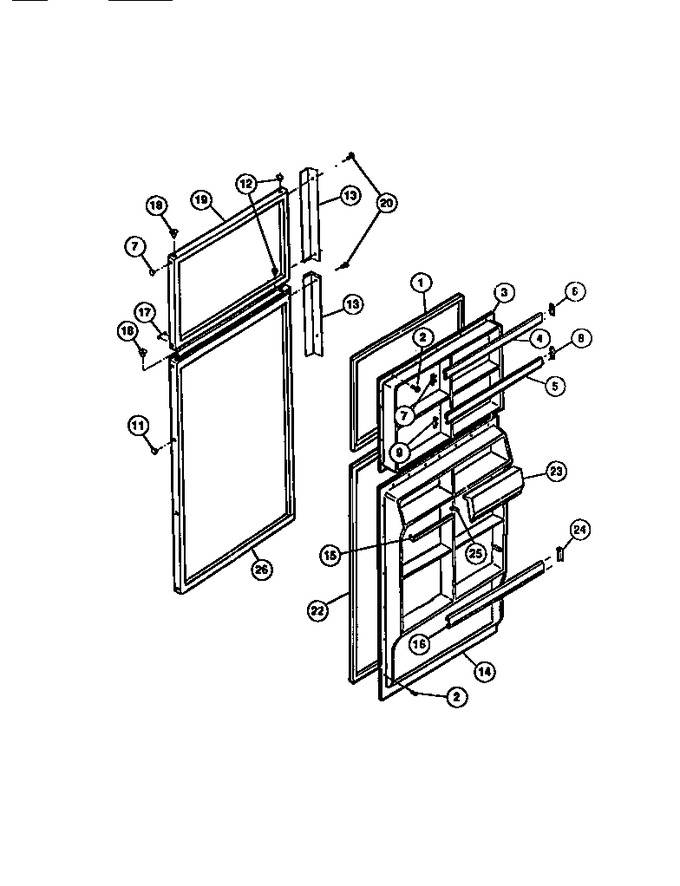

02 - Food And Freezer Doors
03 - Interior Freezer Compartment
04 - Interior Food Compartment
05 - Compressor, Condenser, Evaporator
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206462 | Gasket-freezer |
|
- | |||||
| 2 | 5308002748 | Screw |
|
- | |||||
| 3 | 3206463 | Panel-inner-freezer |
|
- | |||||
| 4 | 5303206767 | Rack-top |
|
- | |||||
| 5 | 5303206768 | Rack-bottom Wide |
|
- | |||||
| 6 | 5303323481 | Support-rh (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 7 | 5303323480 | Support-lh (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 8 | 5303205650 | Support-rh |
|
- | |||||
| 9 | 5303205648 | Support-lh |
|
- | |||||
| 11 | 5308000181 | Button-plug-almond |
|
- | |||||
| 12 | 5303001308 | Button Plug-almond |
|
- | |||||
| 13 | 5303272563 | Handle-almond (2) |
|
- | |||||
| 14 | 5303206770 | Panel-inner-refrigerator |
|
- | |||||
| 15 | 5303206771 | Rack-refrigerator Door |
|
- | |||||
| 16 | 5303206772 | Rack-refrigerator Door (2) |
|
- | |||||
| 17 | 3201526 | Nameplate |
|
- | |||||
| 18 | 3206153 | Bearing (8) |
|
- | |||||
| 19 | 5303916901 | Panel-freezer-almond |
|
- | |||||
| 20 | 5303272568 | Screw-almond (4) |
|
- | |||||
| 22 | 3206466 | Gasket-refrigerator |
|
- | |||||
| 23 | 5303273068 | Door-dairy |
|
- | |||||
| 24 | 5303325990 | Support, Rh (2) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 24 | 5303203263 | Support-lh (2) (non-illustrated) |
|
- | |||||
| 25 | 5303323481 | Support-rh (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 25 | 5303323480 | Support-lh (non-illustrated) (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 26 | 5303916903 | Panel-refrigerator-almond |
|
- | |||||
| *03200 | 5303007739 | Insulation-door (bulk) |
|
- |
