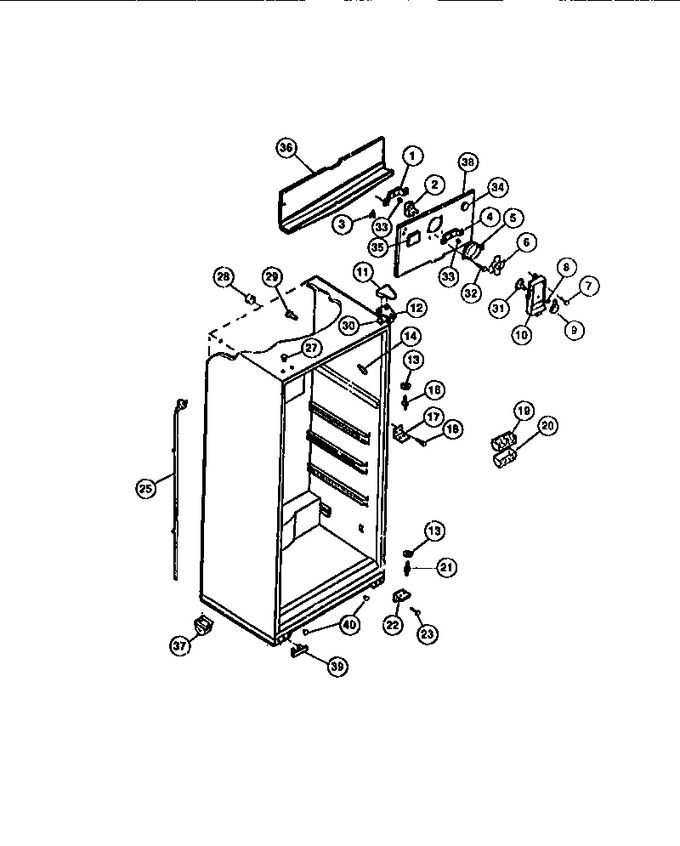

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303205119		Bracket-motor Refrigerator		Appelez-nous	-
2	5300158289		Motor, Fan			Immediately	$ 149.94
3	5303210353		Screw-mounting (non-illustrated)		Appelez-nous	-
3	5308000107		Connector Bracket				$ 33.23
4	5303205118		Bracket - Front		Appelez-nous	-
5	5308000124		Orifice Ring				$ 53.58
5	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
6	5308000010		Fan Blade			Immediately	$ 49.03
7	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
8	5303001028		Push Nut - Damper		Appelez-nous	-
9	3206389		Knob-damper Control		Appelez-nous	-
10	3206387		Cover-fan		Appelez-nous	-
11	3206105		Hinge Cover-almond				$ 60.90
12	241710601		Screw   (Replaces: 5303001479)				$ 13.46
12	3206100		Hinge, Top		Appelez-nous	-
13	5308000186		Washer-hinge (3)			Immediately	$ 6.02
14	5303202340		Corner Trim-almond		Appelez-nous	-
16	5308000184		Pin-center Hinge				$ 8.87
17	5303001369		Bracket- Center Hinge		Appelez-nous	-
18	3206134		Screw-mounting (2)		Appelez-nous	-
19	5303200590		Extension And Insulation, Air Deflector (non-illustrated)		Appelez-nous	-
19	5306014667		Air Deflector		Appelez-nous	-
20	5303001448		Cover-deflector		Appelez-nous	-
21	5303001321		Pin-bottom Bracket				$ 17.25
22	3206136		Bracket-bottom Hinge		Appelez-nous	-
23	3206143		Screw-mounting (4)		Appelez-nous	-
25	5308000056		Drain Spout (non-illustrated)				$ 11.66
25	5303269702		Tube-drain With Seal				$ 104.63
25	5303001361		Push Pin (2) (non-illustrated)		Appelez-nous	-
27	5303001389		Plug - Hinge - Almond		Appelez-nous	-
28	5303001198		Tube, Rubber (2)		Appelez-nous	-
29	5308000097		Support, Coil Cover (2)		Appelez-nous	-
30	5303001037		Shim-top Bracket				$ 12.39
31	3206110		Damper-fan Cover				$ 53.08
32	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
33	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
34	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
34	3206451		Cover-coil		Appelez-nous	-
34	5303209814		Nut-coil Cover (2) (non-illustrated)		Appelez-nous	-
35	5308013636		Plug, Decorative		Appelez-nous	-
36	3206444		Trough-drain		Appelez-nous	-
37	3206237		Roller (2)		Appelez-nous	-
37	5300188673		Roller Assembly (2) (non-illustrated)		Appelez-nous	-
38	5303208309		Plug, Short Test Hole				$ 45.50
39	3206135		Cover-lower Hinge		Appelez-nous	-
40	3206142		Button Plug (2)		Appelez-nous	-
*03201	5308016571		Button-plug (6)				$ 4.79
*03202	5308012296		Plate-tapping (2)				$ 47.44
